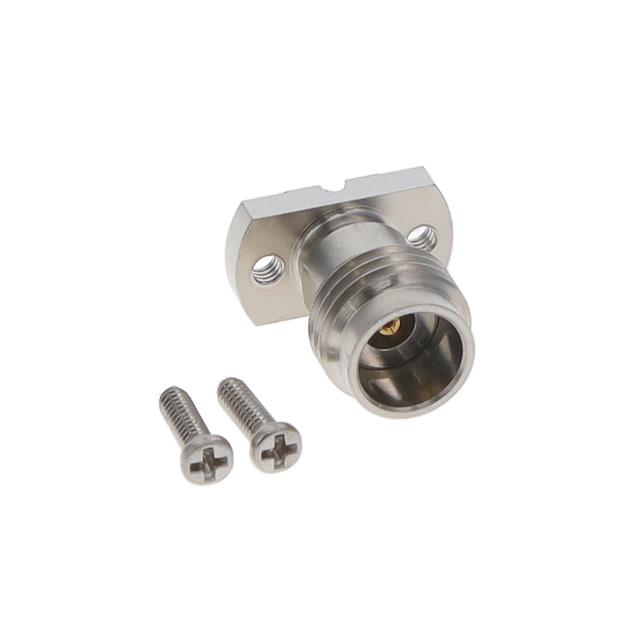

240-J-P-EP-ST-CMM-2
ActiveSamtec Inc.
CONN 2.40MM JACK COMP MNT
Deep-Dive with AI
Search across all available documentation for this part.
240-J-P-EP-ST-CMM-2
ActiveSamtec Inc.
CONN 2.40MM JACK COMP MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 240-J-P-EP-ST-CMM-2 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Female Socket, Jack |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Screw |
| Voltage Rating | 220 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.70 | |
| 10 | $ 29.50 | |||
| 25 | $ 27.65 | |||
| 50 | $ 26.33 | |||
| 100 | $ 26.23 | |||
Description
General part information
240-J-P-EP Series
2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Surface Mount Compression
