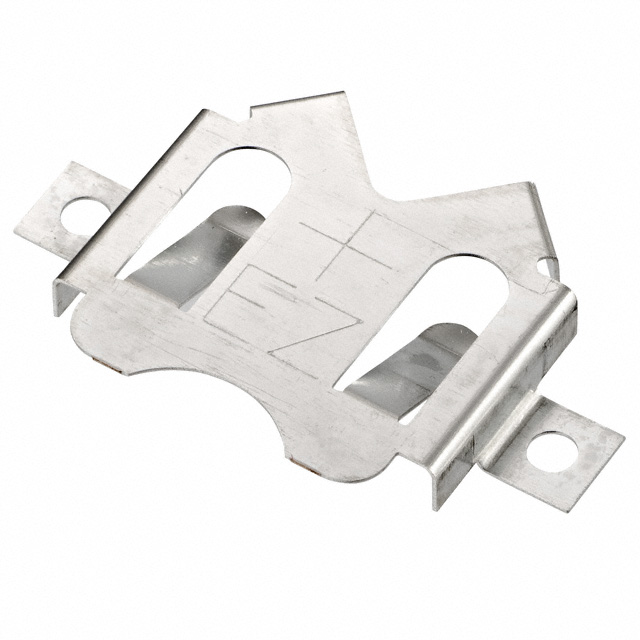

S8211-46R - S8211-46R

S8211-46R

Active
Harwin Inc.

HOLDER, EZ-COIN, CR/BR2032 CELLS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet3D Product Image EN+1
S8211-46R - S8211-46R

S8211-46R

Active
Harwin Inc.

HOLDER, EZ-COIN, CR/BR2032 CELLS

Deep-Dive with AI

DocumentsDatasheet3D Product Image EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationS8211-46R
Battery Cell SizeCoin
Battery Cell Size20 mm
Battery Series2025, 2020, 2032, 2016
Height Above Board [z]4 mm
Height Above Board [z]0.157 "
Mounting TypePCB, Surface Mount
Number of Cells1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
StyleRetainer
Termination StyleSMD (SMT) Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.38
10$ 1.17
50$ 1.02
100$ 0.97
250$ 0.89
Digi-Reel® 1$ 1.38
10$ 1.17
50$ 1.02
100$ 0.97
250$ 0.89
Tape & Reel (TR) 550$ 0.83
1100$ 0.78
2750$ 0.71
5500$ 0.65
NewarkEach (Supplied on Cut Tape) 1$ 1.44
10$ 1.20
100$ 0.99
250$ 0.92

Description

General part information

S8211-4 Series

Battery Retainer Coin, 20.0mm 1 Cell SMD (SMT) Tab
