031-5538-10RFX

Active

Amphenol RF

CONN BNC RCPT R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-5538-10RFX

Active

Amphenol RF

CONN BNC RCPT R/A 50 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-5538-10RFX

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polypropylene (PP)
Fastening Type	Bayonet Lock
Features	Board Lock, Isolated
Frequency - Max [Max]	1 GHz
Housing Color	Black, Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

031-55 Series

Part	Connector Type	Insertion Loss	Mounting Type	Center Contact Plating	Dielectric Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Housing Color	Number of Ports	Shield Termination	Connector Style	Mating Cycles	Fastening Type	Frequency - Max [Max]	Body Finish	Mounting Feature	Voltage Rating	Contact Termination	Impedance	Includes	Cable Group	Cable Group	Features
Amphenol RF 031-5506	Female Socket Jack	0.2 dB	Panel Mount Right Angle Through Hole	Gold	Polytetrafluoroethylene (PTFE)	Phosphor Bronze	-65 ░C	165 °C	Zinc Die Cast	Silver	1	Solder	BNC	500	Bayonet Lock	4 GHz	Nickel	Bulkhead - Front Side Nut	500 V	Solder	50 Ohms
Amphenol RF 031-5559-RFX	Male Pin Plug	0.2 dB	Free Hanging (In-Line)	Gold	Polyoxymethylene (POM) Acetal	Brass	-65 ░C	165 °C	Zinc Die Cast	Silver	1	Crimp	BNC	500	Bayonet Lock	4 GHz	Nickel		500 V	Push On	50 Ohms	1 Connector 1 Ferrule	89907 Belden 88240 RG-58 Plenum	122
Amphenol RF 031-5540-1010	Female Socket Jack	0.2 dB	Panel Mount Right Angle Through Hole	Gold	Polypropylene (PP)	Phosphor Bronze	-55 °C	85 °C	Zinc	Black Silver	1	Solder	BNC	500	Bayonet Lock	1 GHz	Nickel	Bulkhead - Front Side Nut	500 V	Solder	50 Ohms				Board Lock Isolated
Amphenol RF 031-5505	Female Socket Jack			Silver	Polytetrafluoroethylene (PTFE)	Beryllium Copper	-65 ░C	165 °C	Zinc Die Cast	Silver	1	Solder	TNC	500		11 GHz	Tin		500 V	Solder	50 Ohms
Amphenol RF 031-5538-10RFX	Female Socket Jack	0.2 dB	Panel Mount Right Angle Through Hole	Gold	Polypropylene (PP)	Phosphor Bronze	-55 °C	85 °C	Zinc Die Cast	Black Silver	1	Solder	BNC	500	Bayonet Lock	1 GHz	Nickel	Bulkhead - Front Side Nut	500 V	Solder	50 Ohms	1 Connector 1 Lockwasher 1 Nut			Board Lock Isolated
Amphenol RF 031-5540-10RFX	Female Socket Jack	0.2 dB	Panel Mount Right Angle Through Hole	Gold	Polypropylene (PP)	Phosphor Bronze	-55 °C	85 °C	Zinc Die Cast	Black Silver	1	Solder	BNC	500	Bayonet Lock	1 GHz	Nickel	Bulkhead - Front Side Nut	500 V	Solder	50 Ohms	1 Connector 1 Lockwasher 1 Nut			Board Lock Isolated
Amphenol RF 031-5557-RFX	Male Pin Plug	0.2 dB	Free Hanging (In-Line)	Gold	Polyoxymethylene (POM) Acetal	Brass	-65 ░C	165 °C	Brass	Silver	1	Crimp	BNC	500	Bayonet Lock	4 GHz	Nickel		500 V	Push On	50 Ohms	1 Connector 1 Ferrule	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 031-5539-RFX	Female Socket Jack	0.2 dB	Panel Mount Through Hole	Gold	Polyphenylene Oxide (PPO) Polystyrene (PS)	Phosphor Bronze	-55 °C	85 °C	Zinc Die Cast	Black Silver	1	Solder	BNC	500	Bayonet Lock	1 GHz	Nickel	Bulkhead - Front Side Nut	500 V	Solder	50 Ohms	1 Connector 1 Lockwasher 1 Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.83
		10	$ 5.29
		25	$ 5.01
		50	$ 4.90
		100	$ 4.66
		250	$ 4.08
		500	$ 3.96
		1000	$ 3.38
		2500	$ 3.15

Description

General part information

031-55 Series

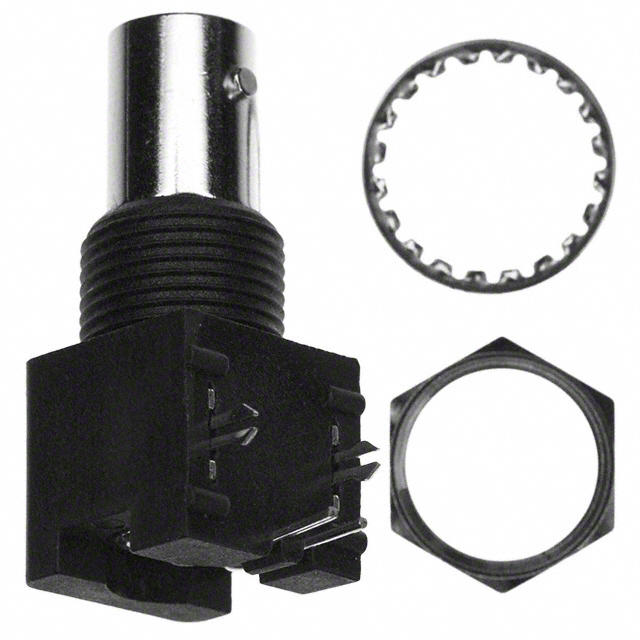

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

No documents available
