RL28-55/47/82B/105

Active

PEPPERL+FUCHS

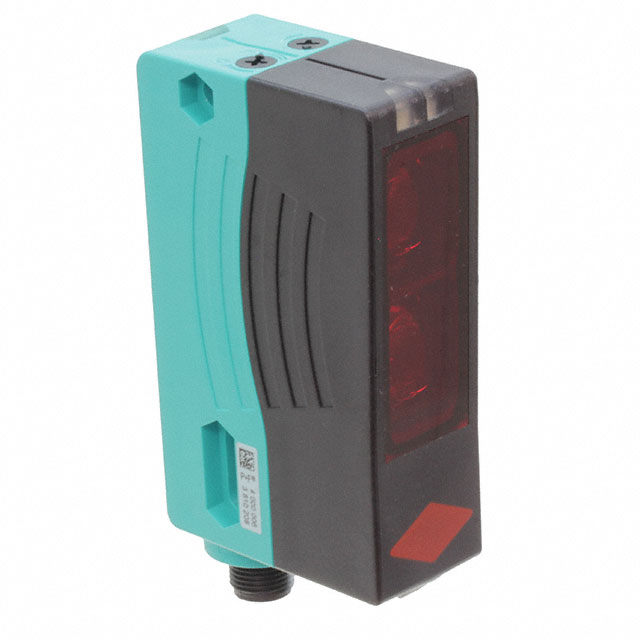

PHOTOELECTRIC SENSOR, RL28 SERIES, 17 M, RETROREFLECTIVE, PNP, 10 VDC TO 30 VDC, M12 CONNECTOR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTOELECTRIC SENSOR, RL28 SERIES, 17 M, RETROREFLECTIVE, PNP, 10 VDC TO 30 VDC, M12 CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	RL28-55/47/82B/105

Current - Supply	40 mA
Mounting Type	Chassis Mount
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Package / Case	Module
Sensing Distance	669.29 in
Sensing Distance	17 m
Sensing Light	Infrared
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Mounting Type	Current - Supply	Sensing Distance	Sensing Distance	Sensing Light	Sensing Method	Output Configuration
PEPPERL+FUCHS RL28-55/47/82B/105	30 VDC	10 VDC	Module	Chassis Mount	40 mA	669.29 in	17 m	Infrared	Retroreflective	PNP - Dark-ON/Light-ON - Selectable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective Optical Sensor 669.29" (17m) Module
