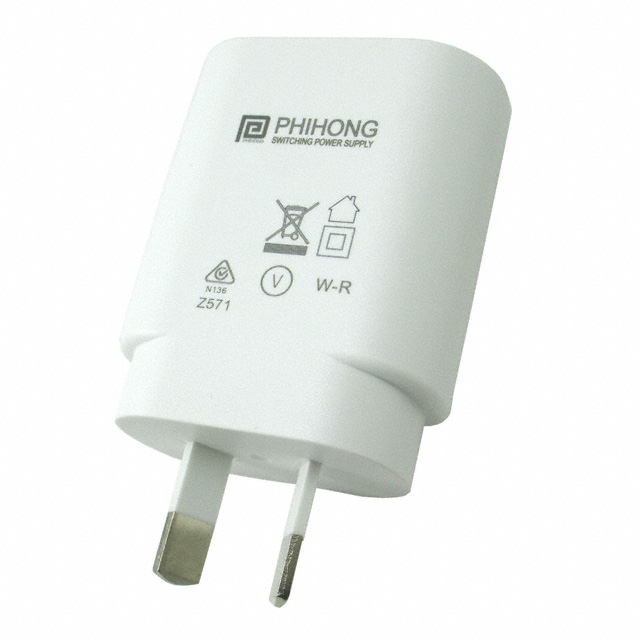

PSM03S-050Q-3W-R

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 2.8W

Search across all available documentation for this part.

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 2.8W

Technical Specifications

Parameters and characteristics for this part

Specification	PSM03S-050Q-3W-R

Applications	ITE (Commercial)
Approval Agency	AS/NZS
Current - Output (Max) [Max]	550 mA
Efficiency	Level V
Form	Wall Mount (Class II)
Input Connector	AS 3112
Input Type	Fixed Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.8 W
Region Utilized	Australia
Size / Dimension [x]	25 mm
Size / Dimension [x]	0.98 "
Size / Dimension [y]	1.69 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	53.2 mm
Size / Dimension [z]	2.09 "
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.176 lb
Weight	79.83 g

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Form	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Weight	Weight	Current - Output (Max) [Max]	Voltage - Output	Region Utilized	Input Type	Standard Number	Applications	Input Connector
Phihong USA PSM03S-050Q-3W-R	53.2 mm	25 mm	1.69 in	2.09 "	0.98 "	43 mm	150 mW	2.8 W	-10 °C	40 °C	Level V	Wall Mount (Class II)	90 VAC	264 VAC	AS/NZS	0.176 lb	79.83 g	550 mA	5 V	Australia	Fixed Blade	60950-1 62368-1	ITE (Commercial)	AS 3112
Phihong USA PSM03S-050Q	53.2 mm	25 mm	1.69 in	2.09 "	0.98 "	43 mm	150 mW	2.8 W	-10 °C	40 °C	Level V	Wall Mount (Class II)	90 VAC	264 VAC	C-Tick	0.176 lb	79.83 g	550 mA	5 V	Australia	Fixed Blade		ITE (Commercial)	AS 3112

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 2.8 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
