430027-501
ActiveLaird Thermal Systems, Inc.

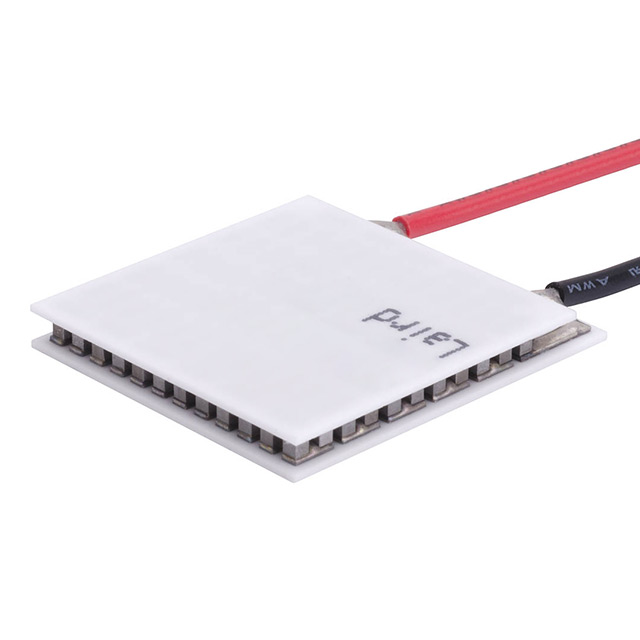

PELTIER MOD 34X30X3.81MM 6A
Deep-Dive with AI
Search across all available documentation for this part.
430027-501
ActiveLaird Thermal Systems, Inc.
PELTIER MOD 34X30X3.81MM 6A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430027-501 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 25 °C, 65 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 29.2 W |
| Resistance | 1.22 Ohms |
| Size / Dimension [x] | 34 mm |
| Size / Dimension [y] | 30 mm |
| Voltage - Max [Max] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.67 | |
| 20 | $ 22.58 | |||
| 100 | $ 20.77 | |||
Description
General part information
430027 Series
Peltier Module 29.2W @ 25°C 6 A 80°C
