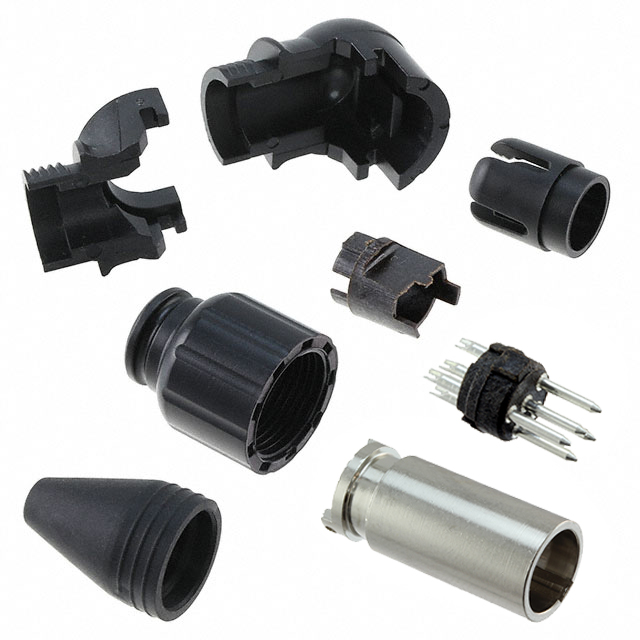

TARA5MX

Active

Switchcraft Inc.

CONN CIRCULAR SKT 5 POS RA CABLE MOUNT 5 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR SKT 5 POS RA CABLE MOUNT 5 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	TARA5MX

Applications	Communication Systems, Medical, Audio, Industrial
Cable Opening [Max] [diameter]	3.81 mm
Cable Opening [Max] [diameter]	0.15 in
Cable Opening [Min] [diameter]	0.12 in
Cable Opening [Min] [diameter]	3.05 mm
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

Part	Fastening Type	Orientation	Mounting Type	Shell Size - Insert	Current Rating (Amps)	Shell Finish	Contact Material	Primary Material	Voltage Rating	Features	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Contact Finish - Mating	Applications	Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Material
Switchcraft Inc. TARA5MX	Latch Lock	Keyed	Free Hanging (In-Line) Right Angle	Mini XLR	4 A	Nickel	Copper Alloy	Metal	125 VAC	Backshell Cable Clamp Ground Strain Relief	0.12 in	3.05 mm	3.81 mm	0.15 in	Silver	Audio Communication Systems Industrial Medical	Black Silver	85 °C	-55 °C	Male Pins Receptacle	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
