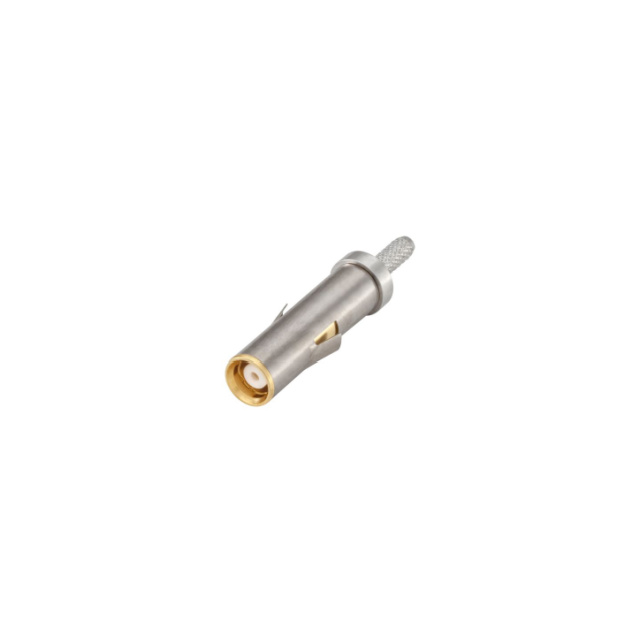

MF1K109-101L5-NM

Active

Rosenberger

CONN MF JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN MF JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MF1K109-101L5-NM

Body Finish	Gold
Body Material	Bronze
Cable Group	RG-178
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	MF
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Features	Non-Magnetic
Frequency - Max [Max]	2 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	1.7 dB
Mating Cycles	100000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Body Material	Frequency - Max [Max]	Body Finish	Voltage Rating	Cable Group	Connector Type	Features	Impedance	Includes	Number of Ports	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Mounting Type	Center Contact Plating	Contact Termination	Shield Termination	Center Contact Material	Dielectric Material	Fastening Type	Insertion Loss
Rosenberger MF1K109-101L5-NM	Bronze	2 GHz	Gold	335 V	RG-178	Female Socket Jack	Non-Magnetic	50 Ohms	1 Connector 1 Contact 1 Ferrule	1	100000	-25 °C	85 °C	Gold	MF	Free Hanging (In-Line)	Gold	Crimp	Crimp	Bronze	Polytetrafluoroethylene (PTFE)	Push-Pull	1.7 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MF Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
