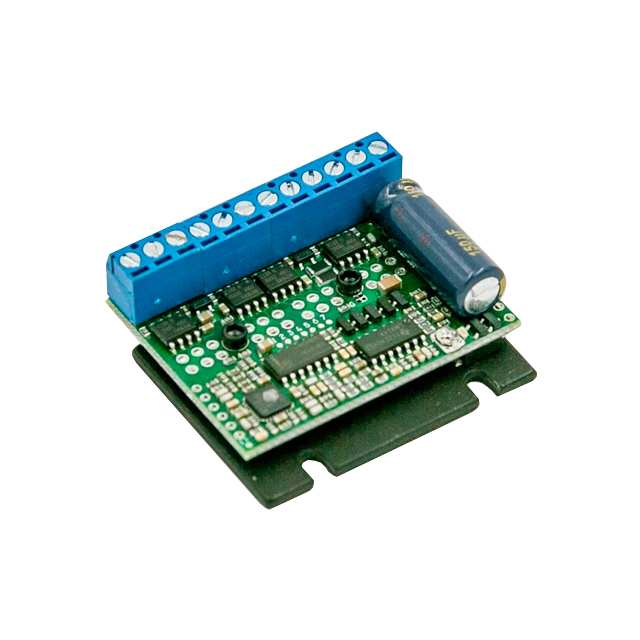

G251X STEP MOTOR CONTROL
ActiveGeckodrive, Inc.
50VDC 3.5A 10USTEP STP MTR CTRL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G251X STEP MOTOR CONTROL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 3.5 A |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Type | Board |
| Voltage - Load [Max] | 50 V |
| Voltage - Load [Min] | 15 V |
| Voltage - Supply [Max] | 50 VDC |
| Voltage - Supply [Min] | 14 V |
| Wattage - Load | 3.3 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.00 | |
Description
General part information
G251X Series
Stepper, Bipolar 14 ~ 50VDC Supply 3.5A 15 ~ 50V Load
