SFV8R-4STBE1HLF
ActiveAmphenol ICC (FCI)

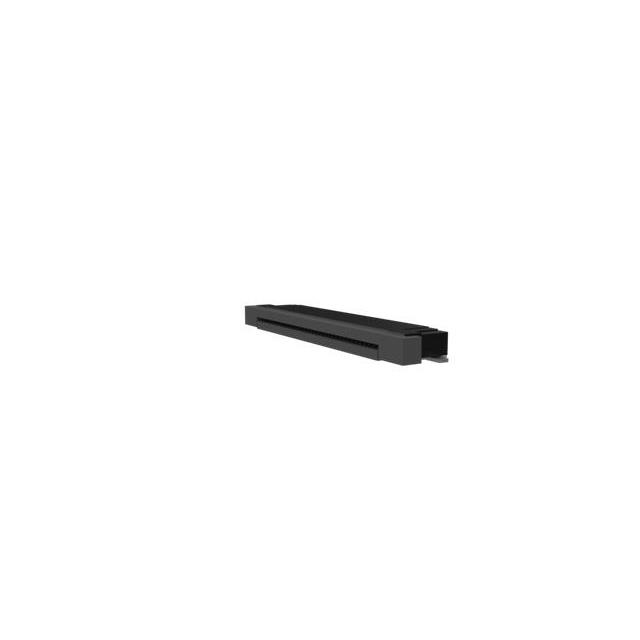

CONN FPC TOP 8POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV8R-4STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FPC TOP 8POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV8R-4STBE1HLF |
|---|---|
| Actuator Color | Beige |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled, Halogen Free |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV8R Series
| Part | Cable End Type | FFC, FCB Thickness [z] | Contact Finish | Pitch [x] | Pitch [x] | Flat Flex Type | Housing Color | Mounting Type | Termination | Height Above Board | Height Above Board | Connector/Contact Type | Locking Feature | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Voltage Rating | Contact Material | Current Rating (Amps) | Actuator Color | Number of Positions | Mating Cycles | Housing Material | Features | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Straight | 0.3 mm 0.33 mm | Gold | 0.5 mm | 0.02 in | FFC FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Top | Slide Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled | 50 V | Phosphor Bronze | 0.5 A | Brown | 8 | 20 | Polyamide (PA) Nylon Glass Filled | ||
Amphenol ICC (FCI) | Straight Tapered | 0.3 mm 0.33 mm | Tin | 0.5 mm | 0.02 in | FFC FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Bottom | Slide Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled | 50 V | Phosphor Bronze | 0.5 A | Brown | 8 | Polyamide (PA) Nylon Glass Filled | Solder Retention Zero Insertion Force (ZIF) | ||
Amphenol ICC (FCI) | Straight Tapered | 0.3 mm 0.33 mm | Tin Alloy | 0.5 mm | 0.02 in | FFC FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Bottom | Slide Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled | 50 V | Phosphor Bronze | 0.5 A | Brown | 8 | 20 | Polyamide (PA) Nylon Glass Filled | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Tapered | Gold | 0.5 mm | 0.02 in | FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Top | Slide Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Phosphor Bronze | 0.5 A | Beige | 8 | 20 | Polyamide (PA) Nylon Glass Filled Halogen Free | 0.3 mm | ||
Amphenol ICC (FCI) | Tapered | Gold | 0.5 mm | 0.02 in | FFC FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Bottom | Slide Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Phosphor Bronze | 0.5 A | Beige | 8 | 20 | Polyamide (PA) Nylon Glass Filled Halogen Free | 0.3 mm | ||
Amphenol ICC (FCI) | Notched or Tabbed | Tin | 0.5 mm | 0.02 in | FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Top | Flip Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 50 V | Phosphor Bronze | 0.5 A | Black | 8 | 20 | Polyamide (PA) Nylon Glass Filled Halogen Free | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | |
Amphenol ICC (FCI) | Straight Tapered | 0.3 mm 0.33 mm | Tin Alloy | 0.5 mm | 0.02 in | FFC FPC | Black | Surface Mount Right Angle | Solder | 1.8 mm | 0.071 in | Contacts Top | Slide Lock | UL94 V-0 | 105 ░C | -55 °C | Polyphenylene Sulfide (PPS) Glass Filled | 50 V | Phosphor Bronze | 0.5 A | Brown | 8 | 20 | Polyamide (PA) Nylon Glass Filled | Solder Retention Zero Insertion Force (ZIF) |
