LHS-08-TS

Active

Adam Tech

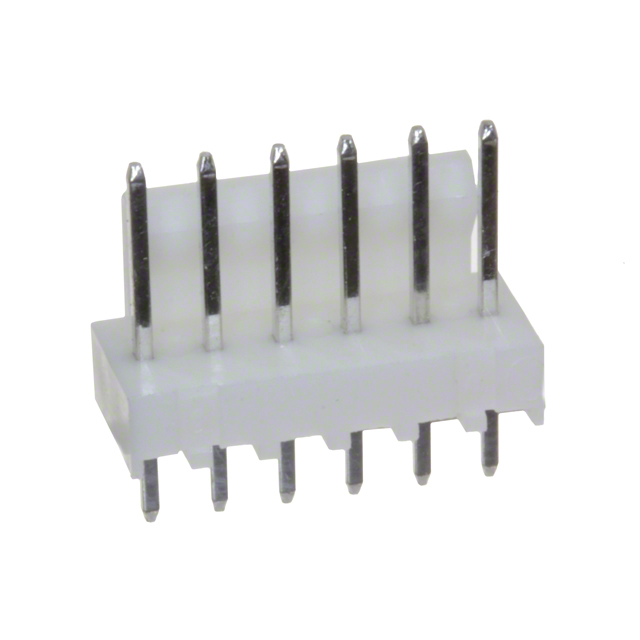

CONN HEADER VERT 8POS 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 8POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHS-08-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.299 in
Contact Length - Mating	7.6 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.327 "
Insulation Height	8.3 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Contact Type	Pitch - Mating	Pitch - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Material	Termination	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Voltage Rating	Current Rating (Amps)	Number of Positions	Contact Shape	Insulation Material	Insulation Color	Shrouding	Mounting Type
Adam Tech LHS-08-TS	0.134 in	3.4 mm	All	Friction Lock	Tin	Male Pin	0.1 in	2.54 mm	Board to Cable/Wire	-25 °C	85 °C	0.327 "	8.3 mm	1	0.299 in	7.6 mm	Header	Brass	Solder	UL94 V-0	14.2 mm	0.559 in	250 VAC	3 A	8	Square	Polyamide (PA66) Nylon 6/6	White	Shrouded - 1 Wall	Through Hole
