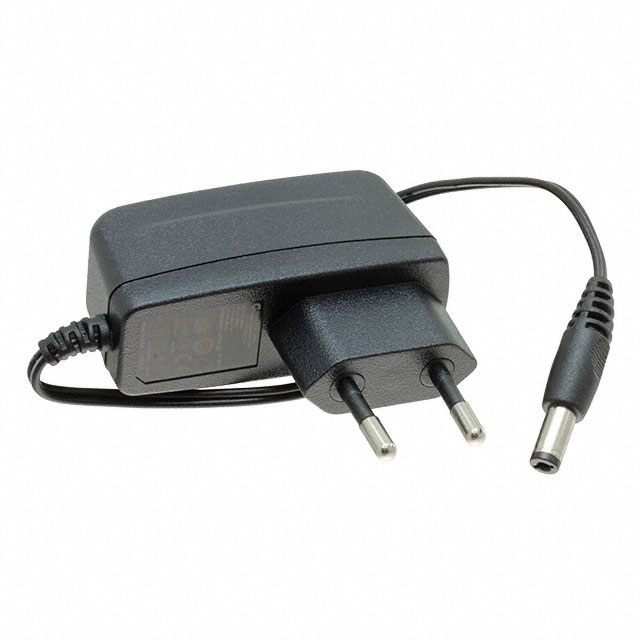

WR9ME500CCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 6W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9ME500CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	CE, LPS, EAC, UKRSepro, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	500 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	Europe
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71.2 mm
Size / Dimension [y]	25 mm
Size / Dimension [y]	0.98 in
Size / Dimension [z]	2.6 in
Size / Dimension [z]	66 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Input Connector	Form	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Polarization	Standard Number	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Cord Length	Cord Length	Power (Watts)	Voltage - Output	Input Type	Applications	Region Utilized	Output Connector [z]
GlobTek, Inc. WR9ME500LCP-F(R6B)	75 mW	500 mA	CEE 7/16	Wall Mount (Class II)	40 °C	0 °C	CB CE EAC LPS UKRSepro	Positive Center	60950-1	Level VI	90 VAC	264 VAC	Barrel Plug	2.5 mm 5.5 mm	11 mm	25 mm	0.98 in	2.6 in	2.8 in	66 mm	71.2 mm	60.2 in	1.53 m	6 W	12 V	Fixed Blade	ITE (Commercial)	Europe
GlobTek, Inc. WR9ME500CCP-F(R6B)	75 mW	500 mA	CEE 7/16	Wall Mount (Class II)	40 °C	0 °C	CB CE EAC LPS UKRSepro	Positive Center	60950-1	Level VI	90 VAC	264 VAC	Barrel Plug	2.1 mm 5.5 mm		25 mm	0.98 in	2.6 in	2.8 in	66 mm	71.2 mm	59 in	1.5 m	6 W	12 V	Fixed Blade	ITE (Commercial)	Europe	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
