GPT-1/2

Active

Bertech

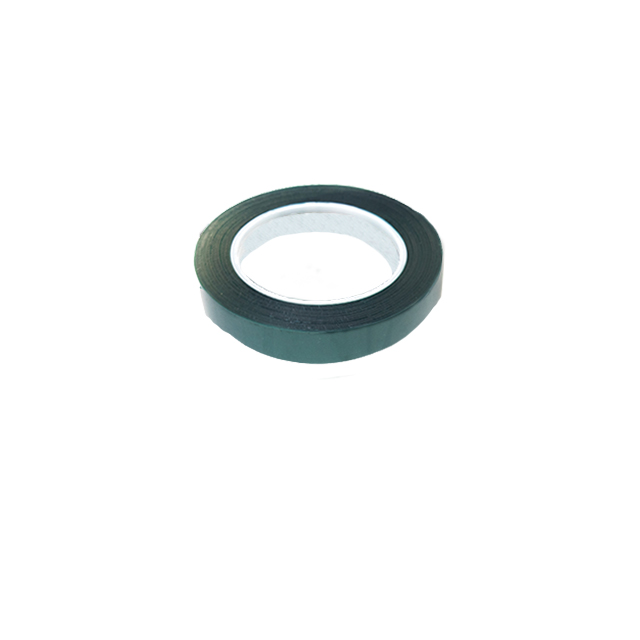

TAPE MASKING GREEN 1/2"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPT-1/2

Active

Bertech

TAPE MASKING GREEN 1/2"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPT-1/2

Adhesive	Silicone
Backing, Carrier	Polyester Film
Color	Green
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range [Max]	200 °C
Temperature Range [Min]	-100 °F, -73 °C
Thickness	0.0035 "
Thickness	88.9 microns
Thickness	0.089 mm
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	2 mils
Thickness - Backing, Carrier	0.05 mm
Usage	Masking
Width	0.5 in
Width	12.7 mm
Width	0.5 in

GPT-1 Series

Part	Thickness	Thickness	Thickness	Length	Length	Length	Backing, Carrier	Tape Type	Color	Temperature Range [Max]	Temperature Range [Min]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Width	Width	Width	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Usage	Width	Width	Shelf Life Start	Shelf Life
Bertech GPT-1 1/4	0.0035 "	88.9 microns	0.089 mm	66 m	216 ft	72 yd	Polyester Film	Masking	Green	200 °C	-99 °F -73 °C	0.002 "	0.051 mm	2 mils	Silicone	31.75 mm	1.25 in		1.5 mils	0.0015 in	0.038 mm	Masking
Bertech GPT-1 5/8	0.0035 "	88.9 microns	0.089 mm	66 m	216 ft	72 yd	Polyester Film	Masking	Green	200 °C	-99 °F -73 °C	0.002 "	0.051 mm	2 mils	Silicone		1.63 in 41.28 mm		1.5 mils	0.0015 in	0.038 mm	Masking	1 5/8
Bertech GPT-1 1/2	0.0035 "	88.9 microns	0.089 mm	66 m	216 ft	72 yd	Polyester Film	Masking	Green	200 °C	-99 °F -73 °C	0.002 "	0.051 mm	2 mils	Silicone	38.1 mm	1.5 "		1.5 mils	0.0015 in	0.038 mm	Masking		1 1/2
Bertech GPT-1 1/8	0.0035 "	88.9 microns	0.089 mm	66 m	216 ft	72 yd	Polyester Film	Masking	Green	200 °C	-99 °F -73 °C	0.002 "	0.051 mm	2 mils	Silicone	28.58 mm	1.13 in		1.5 mils	0.0015 in	0.038 mm	Masking
Bertech GPT-1/8	0.0035 "	88.9 microns	0.089 mm				Polyester Film	Masking	Green	200 °C	-100 °F -73 °C	0.002 "	0.05 mm	2 mils	Silicone	3.18 mm	0.13 in	0.125 "	1.5 mils	0.0015 in	0.038 mm	Masking			Date of Manufacture	18 Months
Bertech GPT-1/2	0.0035 "	88.9 microns	0.089 mm				Polyester Film	Masking	Green	200 °C	-100 °F -73 °C	0.002 "	0.05 mm	2 mils	Silicone	12.7 mm	0.5 in	0.5 in	1.5 mils	0.0015 in	0.038 mm	Masking			Date of Manufacture	18 Months
Bertech GPT-1/4	0.0035 "	88.9 microns	0.089 mm				Polyester Film	Masking	Green	200 °C	-100 °F -73 °C	0.002 "	0.05 mm	2 mils	Silicone	6.35 mm	0.25 in	0.25 in	1.5 mils	0.0015 in	0.038 mm	Masking			Date of Manufacture	18 Months

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.51

Description

General part information

GPT-1 Series

Masking Tape Silicone Adhesive Green 0.50" (12.70mm) 1/2" X

Documents

Technical documentation and resources
