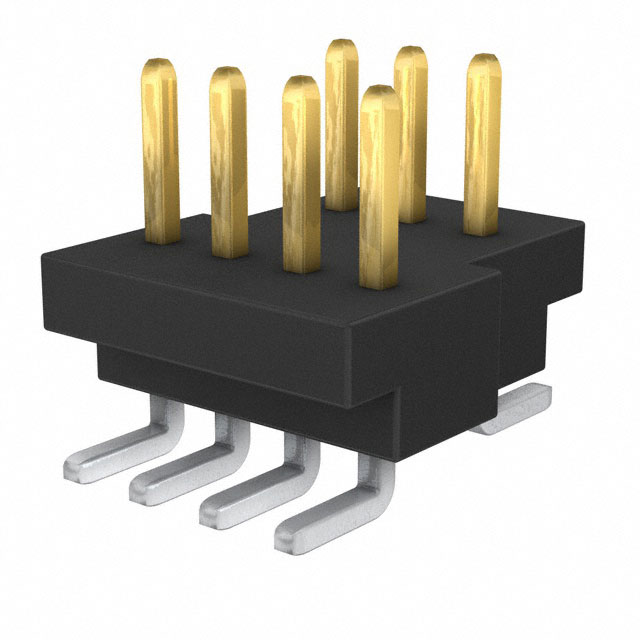

BKT-107-02-L-V-TR

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 7 POS 1MM SOLDER ST SMD TIGER CLAW™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BKT-107-02-L-V-TR

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 7 POS 1MM SOLDER ST SMD TIGER CLAW™ T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BKT-107-02-L-V-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.63 mm
Insulation Height	0.064 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BKT-107 Series

Part	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Shrouding	Fastening Type	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Insulation Color	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Mated Stacking Heights [z]	Insulation Height	Insulation Height	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]
Samtec Inc. BKT-107-01-L-V	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	10 çin	0.25 çm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold	4.14 mm	1.63 mm	0.064 in
Samtec Inc. BKT-107-02-LM-V	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	10 çin	0.25 çm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold		1.63 mm	0.064 in
Samtec Inc. BKT-107-01-FM-V-TR	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	3 µin	0.076 µm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold	4.14 mm	1.63 mm	0.064 in
Samtec Inc. BKT-107-03-F-V	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	3 µin	0.076 µm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold				5 mm	0.098 in	2.5 mm
Samtec Inc. BKT-107-02-L-V-TR	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	10 çin	0.25 çm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold		1.63 mm	0.064 in
Samtec Inc. BKT-107-04-L-V-TR	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	10 çin	0.25 çm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold		3.47 mm	0.137 in	6 mm
Samtec Inc. BKT-107-04-F-V	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	3 µin	0.076 µm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold		3.47 mm	0.137 in	6 mm
Samtec Inc. BKT-107-01-L-V-TR	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	10 çin	0.25 çm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold	4.14 mm	1.63 mm	0.064 in
Samtec Inc. BKT-107-05-F-V	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	3 µin	0.076 µm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold		4.5 mm	0.177 in	7 mm
Samtec Inc. BKT-107-03-L-V-TR	UL94 V-0	-55 °C	125 °C	7	All	0.039 in	1 mm	Solder	Male Pin	2.54 mm	0.1 in	Liquid Crystal Polymer (LCP)	Unshrouded	Push-Pull	2	Tin	10 çin	0.25 çm	Header	Surface Mount	0.065 in	1.65 mm	Phosphor Bronze	Black	Square	2.8 A per Contact	Gold				5 mm	0.098 in	2.5 mm
