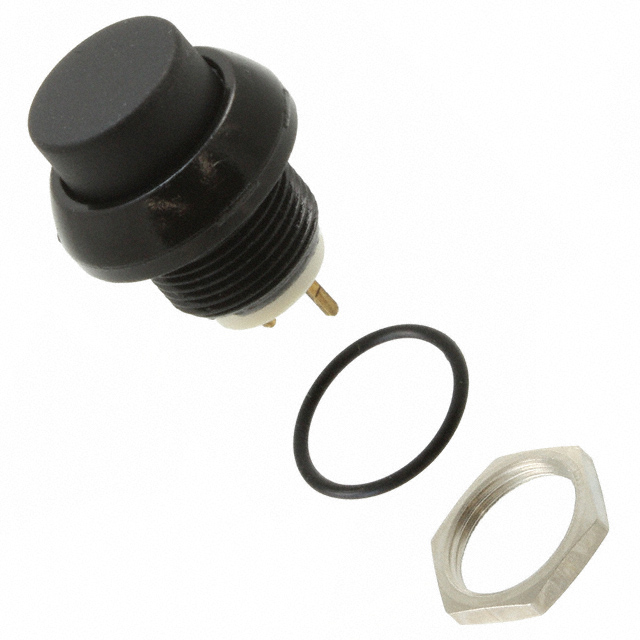

ICP3PAD2

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ICP3PAD2

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Electrical Life	500000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	48 V
Voltage Rating - DC	28 V

Part	Color - Actuator/Cap	Electrical Life	Mounting Type	Switch Function	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Marking	Features	Type	Mechanical Life	Termination Style	Voltage Rating - DC	Ingress Protection
APEM ICP3PAD2	Black	500000 Cycles	Panel Mount Front	Off-Mom	SPST-NO	Button Round	85 °C	-40 °C	13.6 mm	48 V	No Marking	Epoxy Sealed Terminals	Standard	1000000 Cycles	PC Pin	28 V	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
