74AHC02BQ,115

Active

Freescale Semiconductor - NXP

NOR GATE, QUAD, 2 INPUT, 14 PINS, DHVQFN, 74AHC02

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

74AHC02BQ,115

Active

Freescale Semiconductor - NXP

NOR GATE, QUAD, 2 INPUT, 14 PINS, DHVQFN, 74AHC02

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74AHC02BQ,115

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	1.5 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.5 V
Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	7.5 ns
Mounting Type	Surface Mount
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

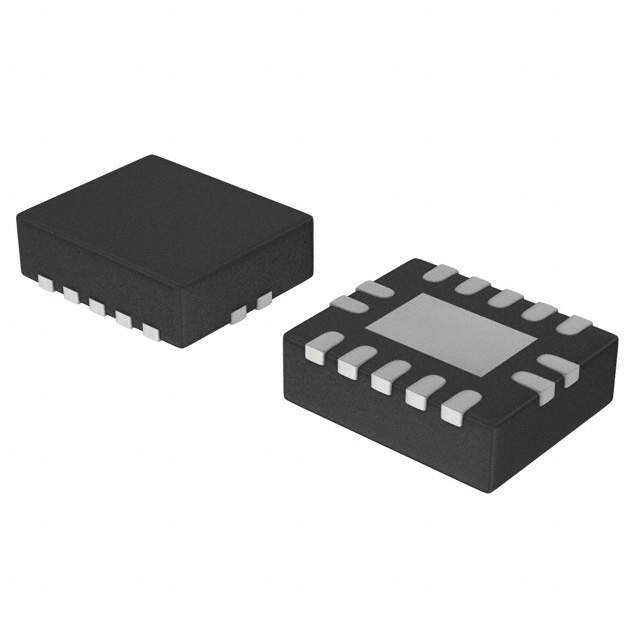

Package / Case	14-VFQFN Exposed Pad
Supplier Device Package	14-DHVQFN (2.5x3)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

74AHC02 Series

Part	Number of Inputs	Max Propagation Delay @ V, Max CL	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Circuits	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Package / Case [custom]	Package / Case [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Logic Type	Supplier Device Package	Qualification	Grade	Package / Case [x]	Package / Case [y]
Freescale Semiconductor - NXP 74AHC02PW,118	2	7.5 ns	5.5 V	2 V	3.85 V	1.5 V	8 mA	8 mA	4	0.5 V	1.65 V	0.173 "	4.4 mm	14-TSSOP	125 °C	-40 °C	Surface Mount	NOR Gate	14-TSSOP
Freescale Semiconductor - NXP 74AHC02BQ,115	2	7.5 ns	5.5 V	2 V	3.85 V	1.5 V	8 mA	8 mA	4	0.5 V	1.65 V			14-VFQFN Exposed Pad	125 °C	-40 °C	Surface Mount	NOR Gate	14-DHVQFN (2.5x3)
Freescale Semiconductor - NXP 74AHC02PW-Q100J	2	7.5 ns	5.5 V	2 V	3.85 V	1.5 V	8 mA	8 mA	4	0.5 V	1.65 V	0.173 "	4.4 mm	14-TSSOP	125 °C	-40 °C	Surface Mount	NOR Gate	14-TSSOP	AEC-Q100	Automotive
Freescale Semiconductor - NXP 74AHC02PW,112	2	7.5 ns	5.5 V	2 V	3.85 V	1.5 V	8 mA	8 mA	4	0.5 V	1.65 V	0.173 "	4.4 mm	14-TSSOP	125 °C	-40 °C	Surface Mount	NOR Gate	14-TSSOP
Freescale Semiconductor - NXP 74AHC02D,118	2	7.5 ns	5.5 V	2 V	3.85 V	1.5 V	8 mA	8 mA	4	0.5 V	1.65 V			14-SOIC	125 °C	-40 °C	Surface Mount	NOR Gate	14-SO			0.154 in	3.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.31
		10	$ 0.21
		25	$ 0.19
		100	$ 0.16
		250	$ 0.15
		500	$ 0.14
		1000	$ 0.13
	Digi-Reel®	1	$ 0.31
		10	$ 0.21
		25	$ 0.19
		100	$ 0.16
		250	$ 0.15
		500	$ 0.14
		1000	$ 0.13
	Tape & Reel (TR)	3000	$ 0.13
		6000	$ 0.12
		9000	$ 0.12
		15000	$ 0.12
		21000	$ 0.12
		30000	$ 0.12
		75000	$ 0.11

Description

General part information

74AHC02 Series

The 74AHC02-Q100; 74AHCT02-Q100 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard No. 7-A.The 74AHC02-Q100; 74AHCT02-Q100 provides a quad 2-input NOR function.This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.<ul><li>Automotive product qualification in accordance with AEC-Q100 (Grade 1)<ul><li>Specified from -40°C to +85°C and from -40°C to +125°C</li></ul></li><li>Balanced propagation delays</li><li>All inputs have a Schmitt-trigger action</li><li>Inputs accept voltages higher than VCC</li><li>Input levels:<ul><li>For 74AHC02-Q100: CMOS level</li><li>For 74AHCT02-Q100: TTL level</li></ul></li><li>ESD protection:<ul><li>MIL-STD-883, method 3015 exceeds 2000V</li><li>HBM JESD22-A114F exceeds 2000V</li><li>MM JESD22-A115-A exceeds 200V (C = 200pF, R = 0O)</li></ul></li><li>Multiple package options</li></ul>
