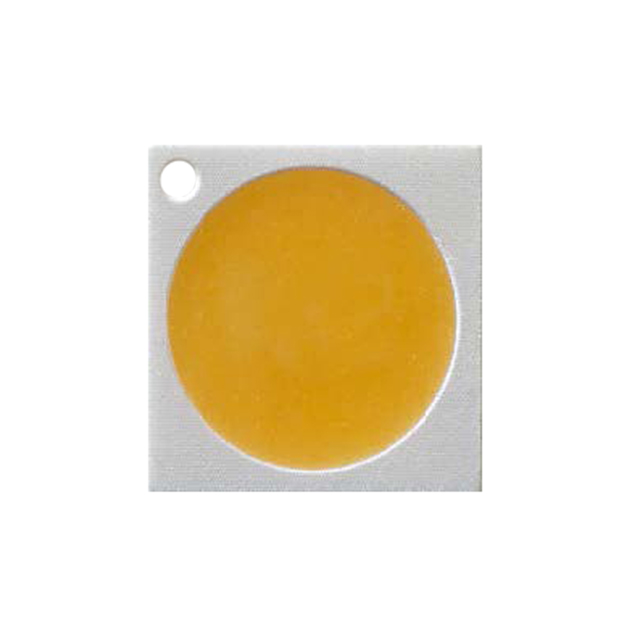

BXEM-40E0000-0-000

Active

BRIDGELUX

LED 3030 NEUTRAL WHT 4000K SMD

Search across all available documentation for this part.

Active

BRIDGELUX

LED 3030 NEUTRAL WHT 4000K SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BXEM-40E0000-0-000

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	80
Current - Max [Max]	240 mA
Current - Test	150 mA
Flux @ 85°C, Current - Test	107 lm
Height - Seated (Max) [Max]	0.024 in
Height - Seated (Max) [Max]	0.62 mm
Lumens/Watt @ Current - Test	119 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [custom]	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6 V

Part	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Supplier Device Package	Lumens/Watt @ Current - Test	Current - Test	Color	Package / Case	Package / Case	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test	Viewing Angle
BRIDGELUX BXEM-40E0000-0-000	4000 K	0.024 in	0.62 mm	Surface Mount	80	12 °C/W	3030	119 lm/W	150 mA	Neutral White	1212	3030 Metric	240 mA	0.118 in	3 mm	3 mm	0.118 in	6 V	107 lm	120 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting 3030 White, Neutral 4000K 6V 150mA 120° 1212 (3030 Metric)
