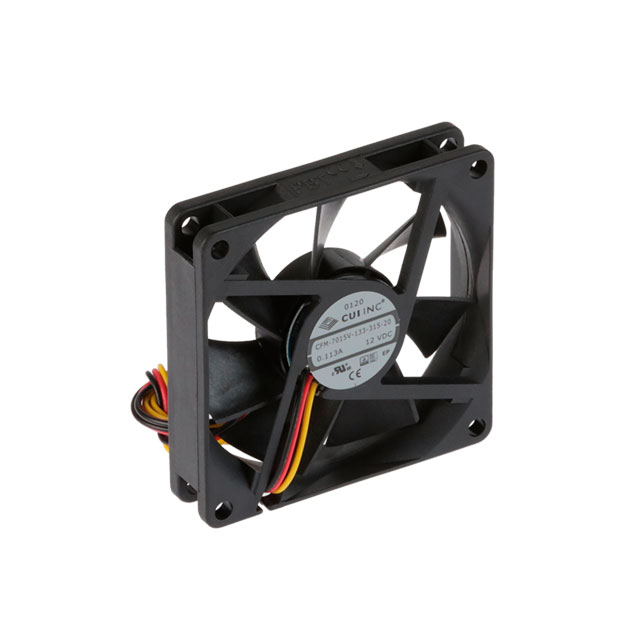

CFM-7015V-133-315-20

Active

CUI Devices

FAN AXIAL 70X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-7015V-133-315-20

Active

CUI Devices

FAN AXIAL 70X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-7015V-133-315-20

Air Flow	27 CFM
Air Flow	0.756 mł/min
Approval Agency	cURus, CE, TUV
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	31.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.56 W
RPM	3300 RPM
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Static Pressure	0.11 in H2O
Static Pressure	27.4 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	4.5 V
Weight	0.091 lb
Weight	41.28 g
Width [x]	15 mm

CFM-7015 Series

Part	Lifetime @ Temp.	Power (Watts)	Air Flow	Air Flow	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Material - Blade	Weight	Weight	Approval Agency	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Noise	Termination	RPM	Features	Width [x]
CUI Devices CFM-7015V-128-265-20	70000 Hrs	1.04 W	0.644 m³/min	23 CFM	12 VDC	70 mm	70 mm	22.4 Pa	0.09 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	4.5 V	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C	0.086 A	26.5 dB	3 Wire Leads	2800 RPM	Auto Restart Speed Sensor (Tach)	15 mm
CUI Devices CFM-7015V-128-265-11	70000 Hrs	1.04 W	0.644 m³/min	23 CFM	12 VDC	70 mm	70 mm	22.4 Pa	0.09 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	4.5 V	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C	0.086 A	26.5 dB	3 Wire Leads	2800 RPM	Auto Restart	15 mm
CUI Devices CFM-7015V-123-215-20	70000 Hrs	660 mW	0.532 m³/min	19 CFM	12 VDC	70 mm	70 mm	17.4 Pa	0.07 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	6 VDC	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C	0.055 A	21.5 dB(A)	3 Wire Leads	2300 RPM	Auto Restart Speed Sensor (Tach)	15 mm
CUI Devices CFM-7015V-128-265	70000 Hrs	1.04 W	0.644 m³/min	23 CFM	12 VDC	70 mm	70 mm	22.4 Pa	0.09 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	4.5 V	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C	0.086 A	26.5 dB	2 Wire Leads	2800 RPM	Auto Restart	15 mm
CUI Devices CFM-7015V-133-315	70000 Hrs	1.56 W	0.756 mł/min	27 CFM	12 VDC	70 mm	70 mm	27.4 Pa	0.11 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	4.5 V	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C		31.5 dB	2 Wire Leads	3300 RPM	Auto Restart	15 mm
CUI Devices CFM-7015V-123-215-11	70000 Hrs	660 mW	0.532 m³/min	19 CFM	12 VDC	70 mm	70 mm	17.4 Pa	0.07 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	6 VDC	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C	0.055 A	21.5 dB(A)	3 Wire Leads	2300 RPM	Auto Restart	15 mm
CUI Devices CFM-7015V-133-315-20	70000 Hrs	1.56 W	0.756 mł/min	27 CFM	12 VDC	70 mm	70 mm	27.4 Pa	0.11 in H2O	Polybutylene Terephthalate (PBT)	0.091 lb	41.28 g	CE cURus TUV	Tubeaxial	4.5 V	13.8 VDC	70 °C	70 °C	-10 °C	-10 °C		31.5 dB	3 Wire Leads	3300 RPM	Auto Restart Speed Sensor (Tach)	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.86
		10	$ 7.50
		25	$ 7.05
		50	$ 6.79
		100	$ 6.25
		300	$ 5.85
		500	$ 5.76

Description

General part information

CFM-7015 Series

Fan Tubeaxial 12VDC Square - 70mm L x 70mm H omniCOOL™ Magnetic Sleeve 27.0 CFM (0.756mł/min) 3 Wire Leads
