DG13-B1LA

Obsolete

ZF Electronics

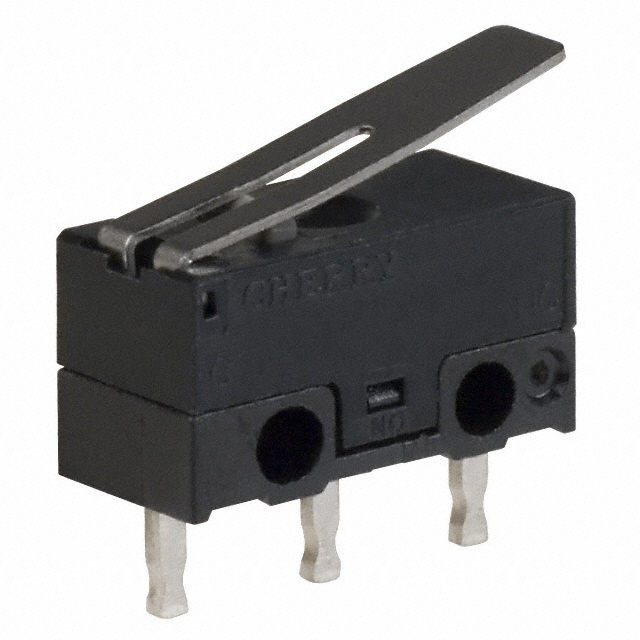

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Obsolete

ZF Electronics

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Mounting Type	Voltage Rating - DC	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating - AC	Pretravel	Pretravel	Actuator Type	Current Rating (Amps)	Electrical Life	Differential Travel	Differential Travel	Operating Position	Operating Position	Circuit	Mechanical Life	Termination Style	Operating Force
ZF Electronics DG13-B2LA	On-Mom	Through Hole Right Angle	30 V	0.022 in	0.55 mm	-25 °C	85 °C	IP40	125 V	0.071 in	1.8 mm	Lever Straight	2 A 3 A	10000 Cycles	0.5 mm	0.02 in	6.8 mm	0.268 "	SPDT	1000000 Cycles	PC Pin
ZF Electronics DG13-B1AA	On-Mom	Through Hole	30 V	0.008 in	0.2 mm	-25 °C	85 °C	IP40	125 V	0.02 in	0.5 mm	Round (Pin Plunger)	2 A 3 A	10000 Cycles	0.1 mm	0.004 in	5.4 mm	0.213 in	SPDT	1000000 Cycles	PC Pin	140 gf
ZF Electronics DG13-B1LA	On-Mom	Through Hole	30 V	0.022 in	0.55 mm	-25 °C	85 °C	IP40	125 V	0.071 in	1.8 mm	Lever Straight	2 A 3 A	10000 Cycles	0.5 mm	0.02 in	6.8 mm	0.268 "	SPDT	1000000 Cycles	PC Pin
ZF Electronics DG13-B1RA	On-Mom	Through Hole	30 V	0.022 in	0.55 mm	-25 °C	85 °C	IP40	125 V	0.06 in	1.5 mm	Lever Roller	2 A 3 A	10000 Cycles	0.5 mm	0.02 in	12.4 mm	0.488 in	SPDT	1000000 Cycles	PC Pin	60 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Through Hole

Technical documentation and resources

No documents available
