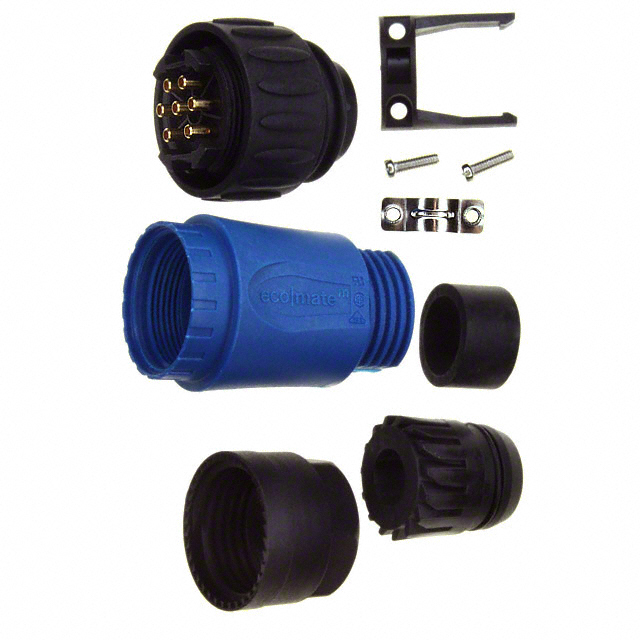

C016 30H006 210 10
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 7POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C016 30H006 210 10
ActiveAmphenol Tuchel Industrial
CONN PLUG MALE 7POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C016 30H006 210 10 |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 12 A |
| Features | Cable Clamp, Strain Relief |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.14 | |
| 10 | $ 16.31 | |||
Description
General part information
C016 30H006 Series
7 Position Circular Connector Plug, Male Pins Solder
Documents
Technical documentation and resources
