OPSA1ANNC2N2

Active

Adam Tech

SC/APC ADAPTER, SIMPLEX, LONG-EA

Search across all available documentation for this part.

Active

Adam Tech

SC/APC ADAPTER, SIMPLEX, LONG-EA

Technical Specifications

Parameters and characteristics for this part

Specification	OPSA1ANNC2N2

Color	Green
Convert From (Adapter End)	SC Receptacle
Convert To (Adapter End)	SC Receptacle
Ferrule Material	Ceramic, Zirconia
Housing Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Simplex/Duplex	Simplex
Type	Coupler

Part	Simplex/Duplex	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Ferrule Material	Type	Housing Material	Convert To (Adapter End)	Convert From (Adapter End)	Color
Adam Tech OPSA1ANNC2N2	Simplex	Flange Panel Mount	70 °C	-25 °C	UL94 V-0	Ceramic Zirconia	Coupler	Plastic	SC Receptacle	SC Receptacle	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

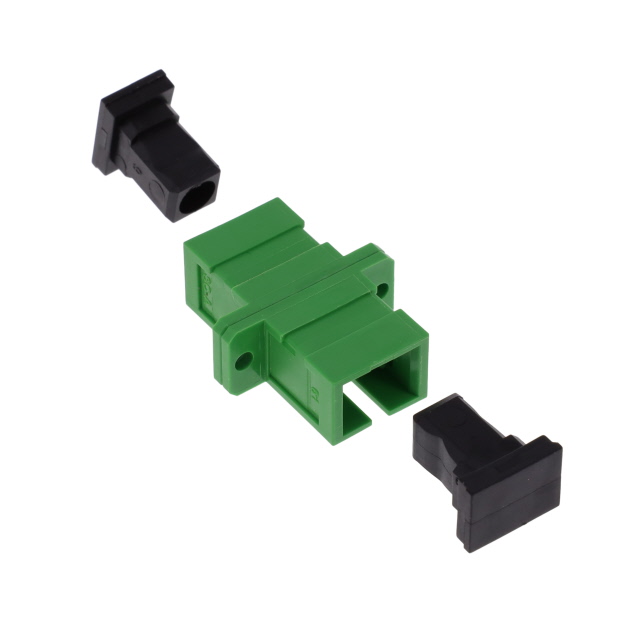

Coupler Fiber Optic Connector SC Receptacle To SC Receptacle Panel Mount, Flange
