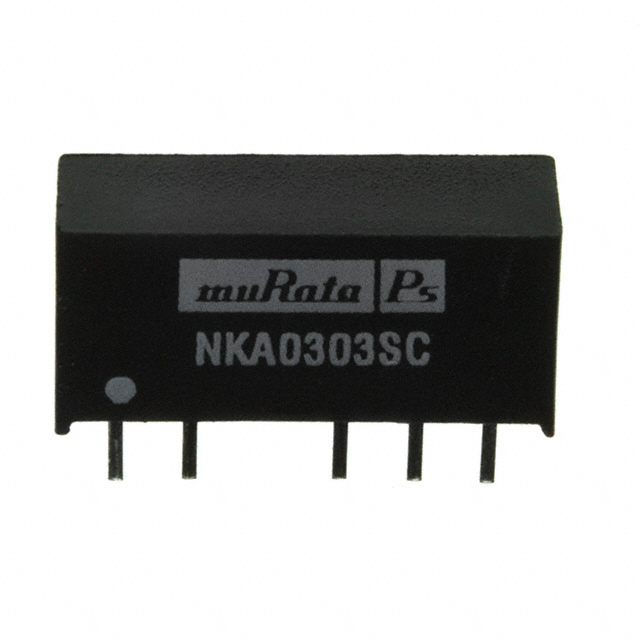

NKA0303SC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Voltage - Output 2	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NKA0312SC	2	-12 V	78 %	3 V	85 °C	-40 °C	3000 V	16.5 mm	7.6 mm	0.3 "	0.65 in	0.23 in	5.8 mm	ITE (Commercial)	12 V	42 mA	42 mA	Isolated Module	3.6 V	Through Hole	6-SIP Module 5 Leads
Murata Power Solutions Inc. NKA0303SC	2	-3.3 V	74 %	3 V	85 °C	-40 °C	3000 V	16.5 mm	7.6 mm	0.3 "	0.65 in	0.23 in	5.8 mm	ITE (Commercial)	3.3 V			Isolated Module	3.6 V	Through Hole	6-SIP Module 5 Leads	152 mA	152 mA
Murata Power Solutions Inc. NKA0303DC	2	-3.3 V	74 %	3 V	85 °C	-40 °C	3000 V	19.5 mm	5.4 mm	0.21 in	0.77 in	0.39 "	9.8 mm	ITE (Commercial)	3.3 V			Isolated Module	3.6 V	Through Hole	14-DIP Module 6 Leads	152 mA	152 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 152mA, 152mA 3V - 3.6V Input
