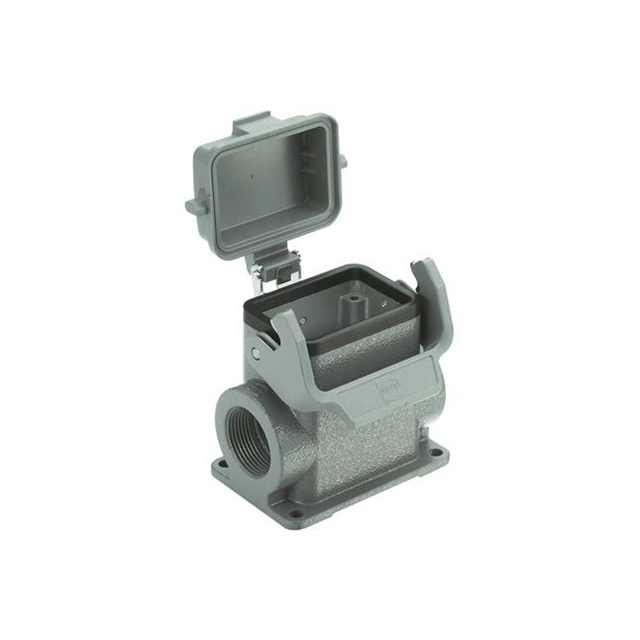

HAN B BASE SURFACE HC 1 LEVER COVER 2 EN ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300060298

Active

HARTING Technology Group

HAN B BASE SURFACE HC 1 LEVER COVER 2 EN ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300060298

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.228 in
Size / Dimension [x]	82 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	2.906 "
Size / Dimension [z]	73.8 mm
Style	Side Entry
Thread Size	PG29

09300060 Series

Part	Style	Lock Location	Features	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Housing Material	Housing Color	Housing Finish	Thread Size	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 09300060303	Bottom Entry	Locking Clip (1) on Hood	Cover	Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm
HARTING Technology Group 09300060301	Bottom Entry	Locking Clip (1) on Base Bottom		Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated
HARTING Technology Group 09300060298	Side Entry	Locking Clip (1) on Base Bottom		Base - Box Mount	57 mm	2.906 "	2.244 "	73.8 mm	3.228 in	82 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated	PG29
HARTING Technology Group 09300060381	Bottom Entry	Locking Clip (1) on Hood		Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated
HARTING Technology Group 09300060313	Bottom Entry	Locking Clip (1) on Base Bottom		Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm			6B
HARTING Technology Group 09300060391	Bottom Entry	Locking Clip (1) on Base Bottom		Base - Panel Mount		1.354 in	2.165 in		3.37 in	85.6 mm	125 °C	-40 °C	6B	IP66	Aluminum Die Cast	Gray	Powder Coated		34.4 mm	55 mm
HARTING Technology Group 09300060302	Bottom Entry	Locking Clip (1) on Base Bottom	Cover	Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated
HARTING Technology Group 09300060292	Side Entry	Locking Clip (1) on Base Bottom	Feed Through	Base - Box Mount	57 mm	2.906 "	2.244 "	73.8 mm	3.228 in	82 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated	PG21
HARTING Technology Group 09300060542	Side Entry	Locking Clip (1) on Base Bottom		Hood		2.835 in	1.693 in		2.362 in	60 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated	PG21	72 mm	43 mm
HARTING Technology Group 09300060543	Side Entry	Locking Clip (1) on Base Bottom		Hood		2.835 in	1.693 in		2.362 in	60 mm	125 °C	-40 °C	6B	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Gray	Powder Coated	PG29	72 mm	43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 86.18
		10	$ 79.08
		25	$ 76.04
		50	$ 73.50
		100	$ 69.45
Newark	Each	1	$ 89.34
		10	$ 84.32
		25	$ 81.81
		50	$ 75.79
		100	$ 71.78

Description

General part information

09300060 Series

Base - Box Mount Connector Side Entry PG29 6B IP65 - Dust Tight, Water Resistant
