NFA31GD1004704D

Obsolete

Murata Power Solutions Inc.

FILTER RC 47 OHM/10PF SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FILTER RC 47 OHM/10PF SMD

Technical Specifications

Parameters and characteristics for this part

Part	Values	Applications	Height [z]	Height [z]	Current	Type	Filter Order	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Number of Channels	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Technology	Resistance - Channel (Ohms)	Values [custom]	Values [custom]
Murata Power Solutions Inc. NFA31GD1006R84D	6.8 Ohms 10 pF	General Purpose	0.039 in	1 mm	50 mA	Low Pass	1st	Surface Mount	10 PC Pad 1206 (3216 Metric) Array	85 °C	-40 °C	6 VDC	4	0.063 in	1.6 mm	0.126 "	3.2 mm	RC	6.8 Ohms
Murata Power Solutions Inc. NFA31GD1004704D	10 pF 47 Ohms	General Purpose	0.039 in	1 mm	20 mA	Low Pass	1st	Surface Mount	10 PC Pad 1206 (3216 Metric) Array	85 °C	-40 °C	6 VDC	4	0.063 in	1.6 mm	0.126 "	3.2 mm	RC	47 Ohms
Murata Power Solutions Inc. NFA31GD1016R84D	6.8 Ohms 100 pF	General Purpose	0.039 in	1 mm	50 mA	Low Pass	1st	Surface Mount	10 PC Pad 1206 (3216 Metric) Array	85 °C	-40 °C	6 VDC	4	0.063 in	1.6 mm	0.126 "	3.2 mm	RC	6.8 Ohms
Murata Power Solutions Inc. NFA31GD1011014D		General Purpose	0.039 in	1 mm	15 mA	Low Pass	1st	Surface Mount	10 PC Pad 1206 (3216 Metric) Array	85 °C	-40 °C	6 VDC	4	0.063 in	1.6 mm	0.126 "	3.2 mm	RC	100 Ohms	100 Ohms	100 pF
Murata Power Solutions Inc. NFA31GD1014704D	47 Ohms 100 pF	General Purpose	0.039 in	1 mm	20 mA	Low Pass	1st	Surface Mount	10 PC Pad 1206 (3216 Metric) Array	85 °C	-40 °C	6 VDC	4	0.063 in	1.6 mm	0.126 "	3.2 mm	RC	47 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

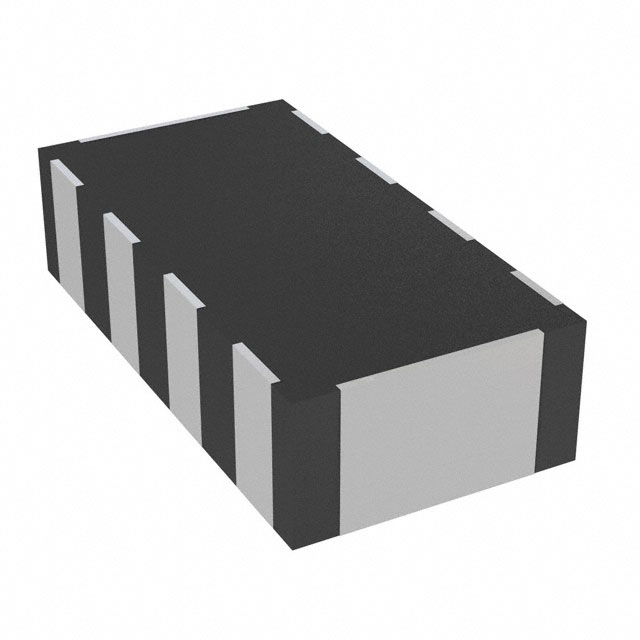

RC EMI Filter 1st Order Low Pass 4 Channel R = 47Ohms, C = 10pF 20 mA 1206 (3216 Metric), Array, 10 PC Pad
