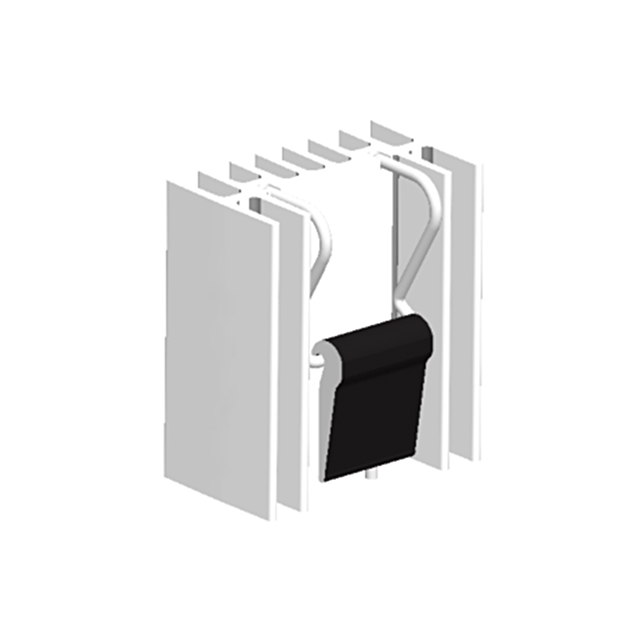

CE-OMNI-38

Active

Wakefield-Vette

HEATSINK CER TO-220 TO-247

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK CER TO-220 TO-247

Technical Specifications

Parameters and characteristics for this part

Specification	CE-OMNI-38

Attachment Method	Solderable Feet
Fin Height [z]	1.512 in
Fin Height [z]	38.4 mm
Length [x]	20.4 mm
Length [x]	0.803 in
Material	Ceramic
Package Cooled	TO-247, TO-220
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 3.8 °C/W
Type	Board Level, Vertical
Width	34 mm
Width [x]	1.339 in

Part	Material	Fin Height [z]	Fin Height [z]	Type	Width	Width [x]	Package Cooled	Thermal Resistance @ Forced Air Flow	Shape	Length [x]	Length [x]	Attachment Method
Wakefield-Vette CE-OMNI-38	Ceramic	1.512 in	38.4 mm	Board Level Vertical	34 mm	1.339 in	TO-220 TO-247	3.8 °C/W 200 LFM	Rectangular Fins	20.4 mm	0.803 in	Solderable Feet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink TO-220, TO-247 Ceramic Board Level, Vertical
