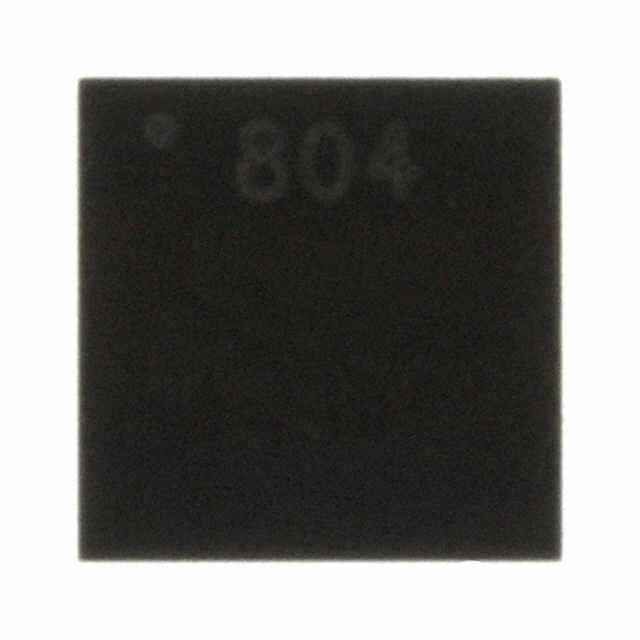

SC804IML.TRT

Obsolete

Semtech Corporation

IC BAT CHG MULT-CHEM 1CEL 16MLPQ

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC BAT CHG MULT-CHEM 1CEL 16MLPQ

Technical Specifications

Parameters and characteristics for this part

Specification	SC804IML.TRT

Battery Chemistry	Multi-Chemistry
Battery Pack Voltage	4.2 V
Charge Current - Max	1.5 A
Current - Charging	Constant - Programmable
Fault Protection	Over Voltage, Over Current, Over Temperature
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-VQFN Exposed Pad
Programmable Features	Timer
Supplier Device Package	16-MLPQ (4x4)
Voltage - Supply (Max) [Max]	14 V

Part	Battery Pack Voltage	Number of Cells	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Max) [Max]	Programmable Features	Current - Charging	Package / Case	Fault Protection	Mounting Type	Charge Current - Max	Battery Chemistry
Semtech Corporation SC804IML.TRT	4.2 V	1	16-MLPQ (4x4)	85 °C	-40 °C	14 V	Timer	Constant - Programmable	16-VQFN Exposed Pad	Over Current Over Temperature Over Voltage	Surface Mount	1.5 A	Multi-Chemistry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Charger IC Multi-Chemistry 16-MLPQ (4x4)
