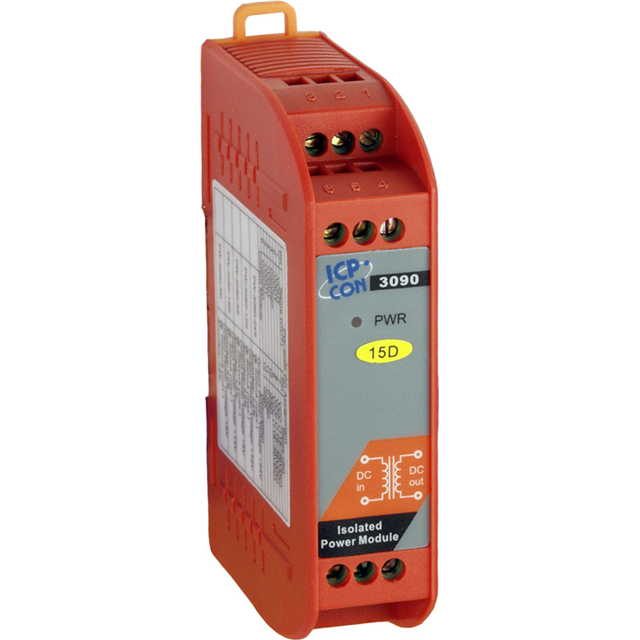

PW-3090-15D-R

Active

ICP DAS USA INC

DC/DC DIN RAIL SUPPLY +/-15V 9W

Search across all available documentation for this part.

Active

ICP DAS USA INC

DC/DC DIN RAIL SUPPLY +/-15V 9W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Power (Watts)	Approval Agency	DC Voltage - Input (Max) [Max]	Features	Number of Outputs	Voltage - Isolation	DC Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Input Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
ICP DAS USA INC PW-3090-24S-R	ITE (Commercial)	9.6 W	CE FCC	36 V	Adjustable Output	1	1000 V	18 V	70 °C	-25 °C	24 V	DC	0.98 in	4.49 in	114 mm	2.76 in	25 mm	70 mm	400 mA	83 %
ICP DAS USA INC PW-3090-5S-R	ITE (Commercial)	10 W	CE FCC	36 V	Adjustable Output	1	1000 V	18 V	70 °C	-25 °C	5 V	DC	0.98 in	4.49 in	114 mm	2.76 in	25 mm	70 mm	2 A	83 %
ICP DAS USA INC PW-3090-5D-R	ITE (Commercial)	10 W	CE FCC	36 V	Adjustable Output	2	1000 V	18 V	70 °C	-25 °C	5 V	DC	0.98 in	4.49 in	114 mm	2.76 in	25 mm	70 mm		83 %	-5 V	1 A	1 A
ICP DAS USA INC PW-3090-15D-R	ITE (Commercial)	9 W	CE FCC	36 V	Adjustable Output	2	1000 V	18 V	70 °C	-25 °C	15 V	DC	0.98 in	4.49 in	114 mm	2.76 in	25 mm	70 mm		83 %	-15 V	300 mA
ICP DAS USA INC PW-3090-12S-R	ITE (Commercial)	9.6 W	CE FCC	36 V	Adjustable Output	1	1000 V	18 V	70 °C	-25 °C	12 V	DC	0.98 in	4.49 in	114 mm	2.76 in	25 mm	70 mm	800 mA	83 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.00

General part information

DC/DC DIN RAIL SUPPLY +/-15V 9W

Technical documentation and resources

No documents available
