19000007106

Active

HARTING Technology Group

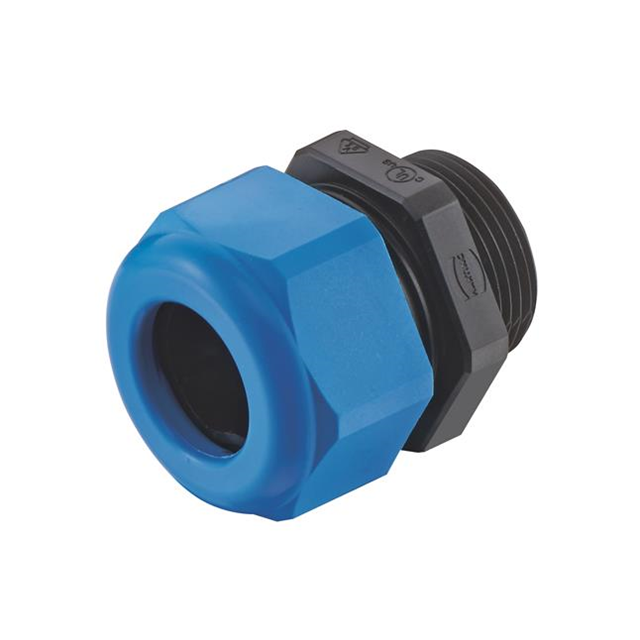

M32 PLASTIC CORD GRIP FOR HAN EX (INSTRINSICALLY SAFE), FOR CABLE DIAMETER 13-20MM

Search across all available documentation for this part.

Active

HARTING Technology Group

M32 PLASTIC CORD GRIP FOR HAN EX (INSTRINSICALLY SAFE), FOR CABLE DIAMETER 13-20MM

Technical Specifications

Parameters and characteristics for this part

Specification	19000007106

Color	Blue
Ingress Protection	IP68, IP69K
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.787 "
Outside Cable Diameter (Max) [Max] [diameter]	20 mm
Outside Cable Diameter (Min)	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.512 in
Thread Size	M32
Type	Cable Gland

Part	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Material	Ingress Protection	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max] [diameter]
HARTING Technology Group 19000007101	Blue	5 mm	0.197 in	Cable Gland	Polyamide (PA) Nylon	IP68 IP69K	M20	9 mm	0.354 in	100 °C	-40 °C
HARTING Technology Group 19000007106	Blue			Cable Gland	Polyamide (PA) Nylon	IP68 IP69K	M32		20 mm	100 °C	-40 °C	0.512 in	13 mm	0.787 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M32 Blue
