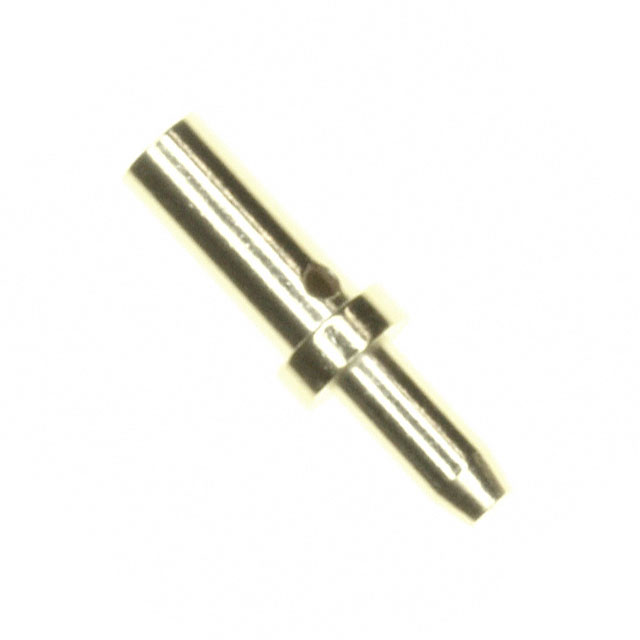

3609-1-07-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3609-1-07-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3609-1-07-21-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.142 in |
| Flange Diameter [diameter] | 3.61 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.2 in |
| Length - Above Flange [x] | 5.08 mm |
| Length - Below Flange [x] | 0.25 in |
| Length - Below Flange [x] | 6.35 mm |
| Length - Overall | 12.6 mm |
| Length - Overall | 0.496 in |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Pin Size - Below Flange [diameter] | 0.103 in |
| Pin Size - Below Flange [diameter] | 2.62 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
3609-1 Series
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Insulation | Contact Finish | Terminal Type | Length - Overall | Length - Overall | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Non-Insulated | Tin-Lead | PC Pin | 12.6 mm | 0.496 in | 0.103 in | 2.62 mm | Free Hanging (In-Line) | 200 Áin | 5.08 Ám | 0.25 in | 6.35 mm | Brass Alloy | Crimp | 0.142 in | 3.61 mm | Wire | 2.03 mm | 0.08 in |
Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Non-Insulated | Gold | PC Pin | 12.6 mm | 0.496 in | 0.103 in | 2.62 mm | Free Hanging (In-Line) | 10 Áin | 0.25 Ám | 0.25 in | 6.35 mm | Brass Alloy | Crimp | 0.142 in | 3.61 mm | Wire | 2.03 mm | 0.08 in |
Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Non-Insulated | Tin | PC Pin | 12.6 mm | 0.496 in | 0.103 in | 2.62 mm | Free Hanging (In-Line) | 200 Áin | 5.08 Ám | 0.25 in | 6.35 mm | Brass | Crimp | 0.142 in | 3.61 mm | Wire | 2.03 mm | 0.08 in |
Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Non-Insulated | Gold | PC Pin | 12.6 mm | 0.496 in | 0.103 in | 2.62 mm | Free Hanging (In-Line) | 20 µin | 0.51 µm | 0.25 in | 6.35 mm | Brass Alloy | Crimp | 0.142 in | 3.61 mm | Wire | 2.03 mm | 0.08 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.33 | |
| 10 | $ 1.12 | |||
| 25 | $ 1.07 | |||
| 50 | $ 1.05 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.66 | |||
Description
General part information
3609-1 Series
PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.080" (2.03mm) Dia
