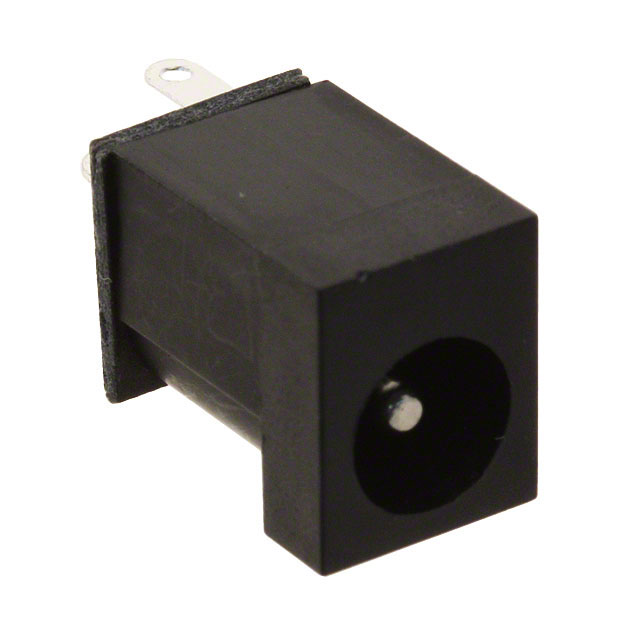

PJ-006A

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-006A

Actual Diameter	6.3 mm, 2 mm
Actual Diameter [diameter]	0.079 in, 0.248 in
Body Color	Black
Connector Type	Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	2 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Gender	Shielding	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Number of Positions/Contacts	Internal Switch(s)	Voltage - Rated	Contact Material - Plating [custom]	Body Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Material Flammability Rating	Actual Diameter [diameter]	Actual Diameter	Mounting Type	Current Rating (Amps)	Contact Material	Housing Material	Termination	Actual Diameter [diameter]	Mating Length/Depth [z]	Mating Length/Depth [z]
CUI Devices PJ-006A	Male	Unshielded	0.083 in 0.217 "	2.1 mm 5.5 mm	2 Conductors 3 Conductors	Normally Closed Single Switch	24 VDC	Silver	Black	85 °C	-20 C	Jack	UL94 V-0	0.079 in 0.248 in	2 mm 6.3 mm	Through Hole	2 A	Brass Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder Eyelet(s)
CUI Devices PJ-006B	Male	Unshielded	0.098 " 0.217 "	2.5 mm 5.5 mm	2 Conductors 3 Conductors	Normally Closed Single Switch	16 V	Silver	Black	85 °C	-20 C	Jack	UL94 V-0	0.098 in 0.248 in		Through Hole	2 A	Brass Phosphor Bronze	Polybutylene Terephthalate (PBT)	Solder Eyelet(s)	2.5 mm 6.3 mm
CUI Devices PJ-006A-SMT-TR	Male	Unshielded	0.083 in 0.217 "	2.1 mm 5.5 mm	2 Conductors 3 Conductors	Normally Closed Single Switch	18 VDC	Silver	Black	85 °C	-20 C	Jack	UL94 V-0	0.079 in 0.248 in	2 mm 6.3 mm	Surface Mount	4 A	Copper Alloy	Liquid Crystal Polymer (LCP)	Solder Eyelet(s)		0.352 in	8.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole
