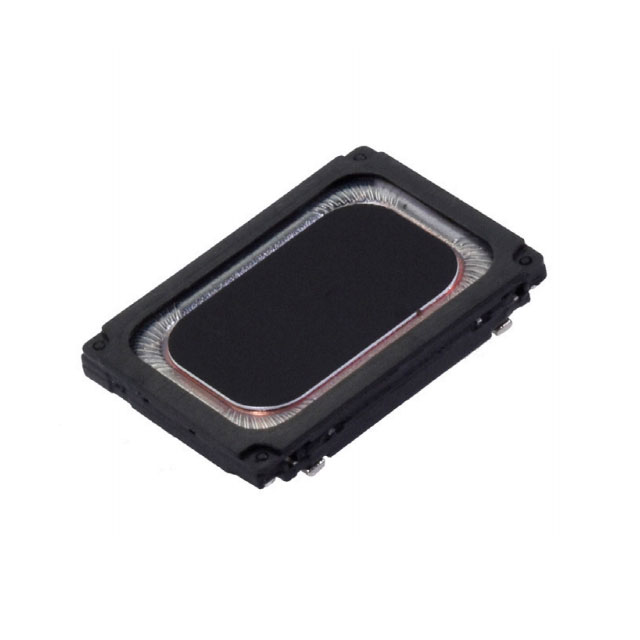

CMS-18132-18SP
ActiveCUI Devices
SPEAKERS NEODYMIUM IRON BORON 900HZ 1.2W 95DBA 8OHM RECTANGULAR SOLDER PAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-18132-18SP |
|---|---|
| Distortion Rating [Max] | 10 % |
| Efficiency - dBA | 95 dBA |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 400 Hz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 1 W |
| Shape | Rectangular |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CMS-18132 Series
8 Ohms General Purpose Speaker 1 W 400 Hz ~ 10 kHz Top Rectangular
