ETMA1201666UC-P51-WP
ObsoleteCUI Inc.

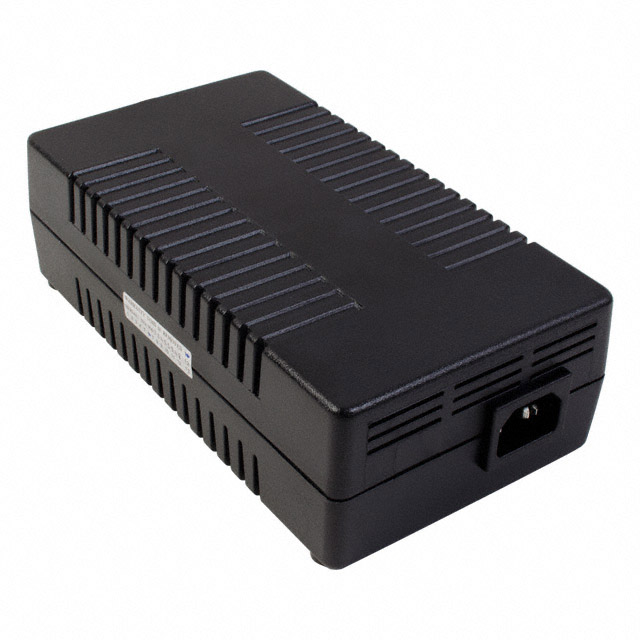

AC/DC DESKTOP ADAPTER 12V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ETMA1201666UC-P51-WP |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, UL |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 16.66 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 200 W |
| Region Utilized | North America |
| Size / Dimension [x] | 7.42 in |
| Size / Dimension [x] | 188.5 mm |
| Size / Dimension [y] | 4.11 in |
| Size / Dimension [y] | 104.5 mm |
| Size / Dimension [z] | 60 mm |
| Size / Dimension [z] | 2.36 in |
| Standard Number | 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
| Weight | 2.4 lbs |
| Weight | 1.1 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ETMA1201666 Series
12V 200 W AC/DC External Desktop (Class I) Adapter Cord Input
