FH29B-60S-0.2SHW(99)

Obsolete

Hirose Electric USA, Inc.

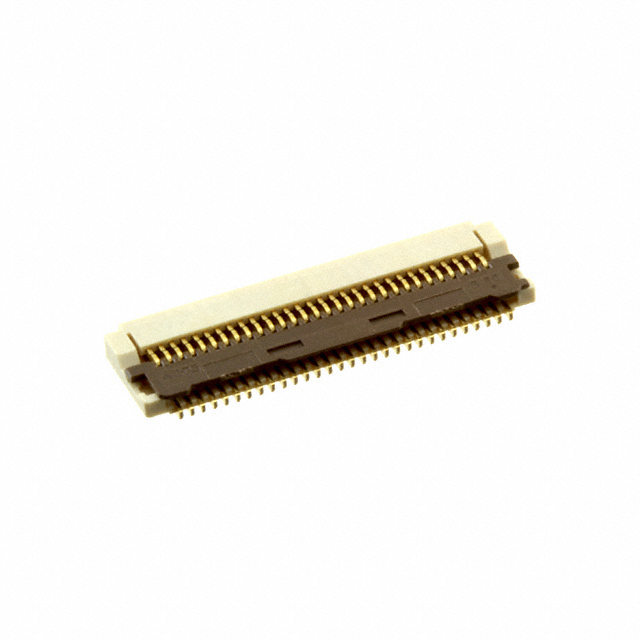

CONN FPC BOTTOM 60POS 0.2MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FH29 Series Datasheet

FH29B-60S-0.2SHW(99)

Obsolete

Hirose Electric USA, Inc.

CONN FPC BOTTOM 60POS 0.2MM R/A

Deep-Dive with AI

DocumentsDatasheet FH29 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH29B-60S-0.2SHW(99)

Actuator Color	Brown
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.25 A
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.047 "
Height Above Board	1.2 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 mm
Pitch [x]	0.008 in
Termination	Solder
Voltage Rating	40 V

FH29B Series

Part	Contact Finish	Height Above Board	Height Above Board	Actuator Material	Flat Flex Type	Housing Color	Connector/Contact Type	Current Rating (Amps)	Contact Material	Housing Material	Mating Cycles	FFC, FCB Thickness	Number of Positions	Mounting Type	Termination	Pitch [x]	Pitch [x]	Locking Feature	Cable End Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Actuator Color	Material Flammability Rating	Contact Finish Thickness
Hirose Electric USA, Inc. FH29BW-22S-0.2SHW(99)	Gold	0.047 "	1.2 mm	Nylon Polyamide (PA)	FPC	Beige	Contacts Bottom	0.25 A	Phosphor Bronze	Liquid Crystal Polymer (LCP) Halogen Free	20	0.2 mm	22 positions	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed	85 °C	-55 °C	40 V	Brown	UL94 HB
Hirose Electric USA, Inc. FH29BJ-70S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	FPC	Beige	Contacts Bottom		Phosphor Bronze	Liquid Crystal Polymer (LCP)		0.2 mm	70	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed				Black
Hirose Electric USA, Inc. FH29B-34S-0.2SHW(99)	Gold	0.047 "	1.2 mm	Nylon Polyamide (PA)	FPC	Beige	Contacts Bottom	0.25 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	20	0.2 mm	34	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed	85 °C	-55 °C	40 V	Brown	UL94 V-0
Hirose Electric USA, Inc. FH29BJ-120S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	FPC		Contacts Bottom		Phosphor Bronze	Liquid Crystal Polymer (LCP)		0.2 mm	120	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed
Hirose Electric USA, Inc. FH29B-100S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Nylon Polyamide (PA)	FPC	Beige	Contacts Bottom	0.25 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	20	0.2 mm	100	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed	85 °C	-55 °C	40 V	Brown	UL94 V-0	Flash
Hirose Electric USA, Inc. FH29BJ-80S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	FPC	Beige	Contacts Bottom		Phosphor Bronze	Liquid Crystal Polymer (LCP)		0.2 mm	80	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed				Black
Hirose Electric USA, Inc. FH29B-120S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Nylon Polyamide (PA)	FPC	Beige	Contacts Bottom	0.25 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	20	0.2 mm	120	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed	85 °C	-55 °C	40 V	Brown	UL94 V-0	Flash
Hirose Electric USA, Inc. FH29B-60S-0.2SHW(99)	Gold	0.047 "	1.2 mm	Nylon Polyamide (PA)	FPC	Beige	Contacts Bottom	0.25 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	20	0.2 mm	60	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed	85 °C	-55 °C	40 V	Brown	UL94 V-0
Hirose Electric USA, Inc. FH29BJ-90S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Polyphenylene Sulfide (PPS)	FPC	Beige	Contacts Bottom		Phosphor Bronze	Liquid Crystal Polymer (LCP)		0.2 mm	90	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed				Black
Hirose Electric USA, Inc. FH29B-50S-0.2SHW(05)	Gold	0.047 "	1.2 mm	Nylon Polyamide (PA)	FPC	Beige	Contacts Bottom	0.25 A	Phosphor Bronze	Liquid Crystal Polymer (LCP)	20	0.2 mm	50	Surface Mount Right Angle	Solder	0.2 mm	0.008 in	Flip Lock	Tabbed	85 °C	-55 °C	40 V	Brown	UL94 V-0	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FH29B Series

60 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
