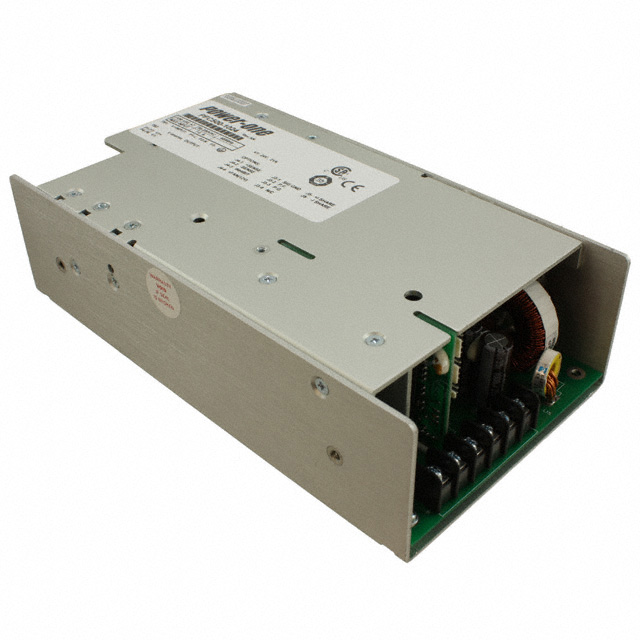

PFC500-1024

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 500W

Deep-Dive with AI

Search across all available documentation for this part.

PFC500-1024

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 500W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFC500-1024

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	21 A
Efficiency	75 %
Features	Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Standby Output, PFC, Remote Sense
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	500 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	63.5 mm
Size / Dimension [z]	2.5 in
Type	Enclosed
Voltage - Output 1	24 V

PFC500 Series

Part	Applications	Current - Output 1	Operating Temperature [Max]	Voltage - Output 1	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Approval Agency	Type	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [y]
EOS Power India Private Ltd PFC500-1048F	ITE (Commercial)	10.4 A	70 °C	48 V	75 %	1	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input
EOS Power India Private Ltd PFC500-1048FG	ITE (Commercial)	10.4 A	70 °C	48 V	75 %	1	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input
EOS Power India Private Ltd PFC500-1024F	ITE (Commercial)	21 A	70 °C	24 V	75 %	1	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input
EOS Power India Private Ltd PFC500-1024G	ITE (Commercial)	21 A	70 °C	24 V	75 %	1		2.5 in	228.6 mm	5 "		9 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	63.5 mm	127 mm
EOS Power India Private Ltd PFC500-1024	ITE (Commercial)	21 A	70 °C	24 V	75 %	1		2.5 in	228.6 mm	5 "		9 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	63.5 mm	127 mm
EOS Power India Private Ltd PFC500-1048G	ITE (Commercial)	10.4 A	70 °C	48 V	75 %	1		2.5 in	228.6 mm	5 "		9 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	63.5 mm	127 mm
EOS Power India Private Ltd PFC500-1024FG	ITE (Commercial)	21 A	70 °C	24 V	75 %	1	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in	500 W	CE	Enclosed	Chassis Mount	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PFC500 Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
