APTB1612SEKCGKC

Active

Kingbright

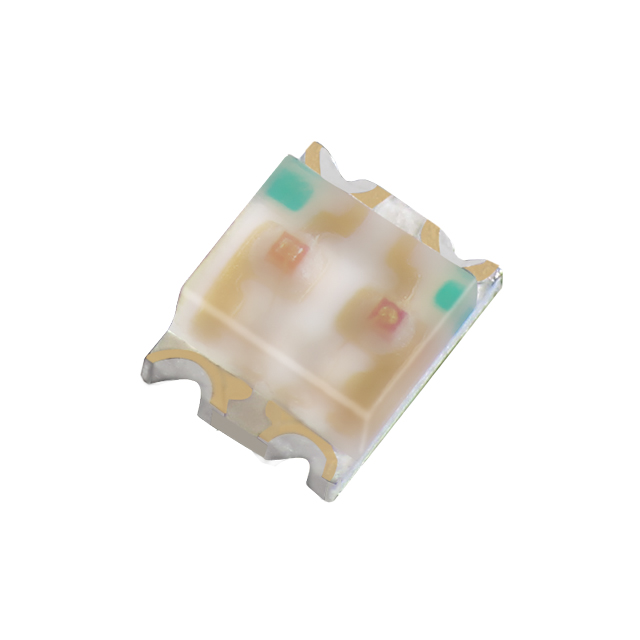

LED GREEN/ORANGE CLEAR 4SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APTB1612SEKCGKC

Active

Kingbright

LED GREEN/ORANGE CLEAR 4SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APTB1612SEKCGKC

Color	Orange, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	0.85 mm
Lens Color	Colorless
Lens Size [x]	1.25 mm
Lens Size [y]	1.1 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	240 mcd
Millicandela Rating [custom]	50 mcd
Mounting Type	Surface Mount
Package / Case	0605 (1613 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	1.25 mm
Supplier Device Package	4-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.1 V, 2.1 V
Wavelength - Dominant	601 nm, 570 nm
Wavelength - Peak	610 nm, 574 nm

APTB1612 Series

Part	Color	Lens Transparency	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Style	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Configuration	Wavelength - Dominant	Height (Max) [Max] [z]	Lens Color	Viewing Angle	Lens Size [y]	Lens Size [x]	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Mounting Type	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Current - Test	Current - Test [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant [custom]	Millicandela Rating [custom]
Kingbright APTB1612LSURKQBDC	Blue Red	Clear	460 nm	645 nm	Rectangle with Flat Top	9 mcd 12 mcd	1.25 mm	1.6 mm	4-SMD	Independent	465 nm 630 nm	0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead	1.8 V	2.7 V	2 mA	2 mA	Surface Mount
Kingbright APTB1612SYKCGKC-F01	Green Yellow	Clear			Rectangle with Flat Top		1.25 mm	1.6 mm	Chip LED	Independent	570 nm 590 nm	0.65 mm	Colorless	120 °	1.25 mm	1.2 mm	0605 (1613 Metric)					Surface Mount	574 nm 590 nm	120mcd Yellow 50mcd Green	2 V 2.1 V	20 mA 20 mA
Kingbright APTB1612LSURKSYKC	Red Yellow	Clear		645 nm	Rectangle with Flat Top		1.25 mm	1.6 mm	4-SMD	Independent	590 nm 630 nm	0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead				2 mA	Surface Mount			1.8 V 1.9 V		2 mA	590 nm	10 mcd	9 mcd
Kingbright APTB1612LVBDSYKJ3C	Blue Yellow	Clear			Rectangle with Flat Top	20 mcd 35 mcd	1.25 mm	1.6 mm	4-SMD	Independent	470 nm 590 nm	0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead					Surface Mount	465 nm 590 nm		1.9 V 2.7 V	2 mA 2 mA
Kingbright APTB1612LSURKCGKC	Green Red	Clear			Rectangle with Flat Top		1.25 mm	1.6 mm	4-SMD	Independent	570 nm 630 nm	0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead					Surface Mount	574 nm 645 nm		1.8 V 1.9 V	2 mA 2 mA				9 mcd	3 mcd
Kingbright APTB1612ESGC-F01	Green Red	Clear			Rectangle with Flat Top		1.25 mm	1.6 mm	Chip LED	Independent	568 nm 617 nm	0.65 mm	Colorless	120 °	1.25 mm	1.2 mm	0605 (1613 Metric)					Surface Mount	565 nm 627 nm		2 V 2.2 V	20 mA 20 mA				7 mcd	12 mcd
Kingbright APTB1612SEKCGKC	Green Orange	Clear			Rectangle with Flat Top		1.25 mm	1.6 mm	4-SMD	Independent	570 nm 601 nm	0.85 mm	Colorless	120 °	1.1 mm	1.25 mm	0605 (1613 Metric)					Surface Mount	574 nm 610 nm		2.1 V 2.1 V	20 mA 20 mA					50 mcd	240 mcd
Kingbright APTB1612LVBDSEKJ3C	Blue Red	Clear	465 nm	640 nm	Rectangle with Flat Top	20 mcd 40 mcd	1.25 mm	1.6 mm	4-SMD	Independent	470 nm 625 nm	0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead	1.8 V	2.7 V	2 mA	2 mA	Surface Mount
Kingbright APTB1612LZGKSYKC	Green Yellow	Clear			Rectangle with Flat Top	10 mcd 50 mcd	1.25 mm	1.6 mm	4-SMD	Independent	525 nm 590 nm	0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead					Surface Mount				2 mA 2 mA		590 nm					515 nm
Kingbright APTB1612LQBDCGKC	Blue Green	Clear	460 nm		Rectangle with Flat Top		1.25 mm	1.6 mm	4-SMD	Independent		0.85 mm	Colorless	120 °	1.25 mm	1.2 mm	4-SMD No Lead		2.7 V	2 mA		Surface Mount									3 mcd		574 nm	2 mA	1.9 V	465 nm 570 nm	12 mcd
