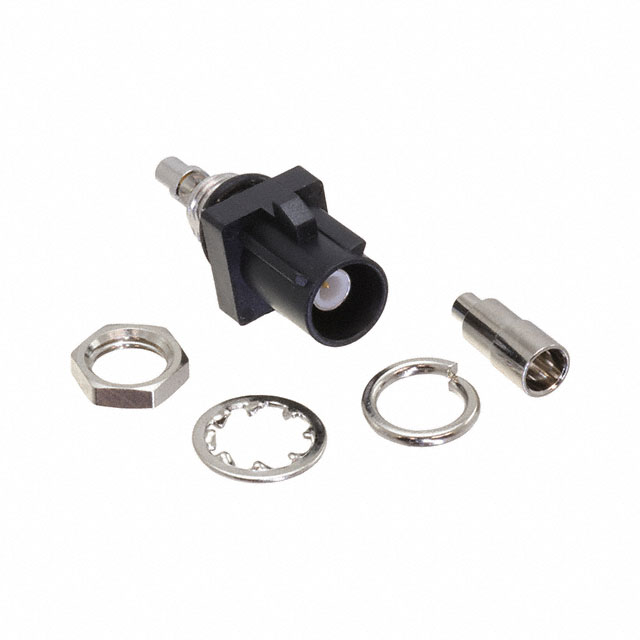

RF55-24A-T-09-50-A-SH

Active

Adam Tech

CONN FAKRA PLUG PCB 50OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

RF55-24A-T-09-50-A-SH

Active

Adam Tech

CONN FAKRA PLUG PCB 50OHM CRIMP

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RF55-24A-T-09-50-A-SH

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Code A
Frequency - Max [Max]	4 GHz
Housing Color	Black
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

RF55-24 Series

Part	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Number of Ports	Impedance	Mounting Feature	Body Material	Center Contact Plating	Dielectric Material	Ingress Protection	Center Contact Material	Features	Connector Type	Shield Termination	Frequency - Max [Max]	Housing Color
Adam Tech RF55-24Z-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code Z	Male Pin Plug	Solder	4 GHz
Adam Tech RF55-24K-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code K	Male Pin Plug	Solder	4 GHz	Curry
Adam Tech RF55-24A-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code A	Male Pin Plug	Solder	4 GHz	Black
Adam Tech RF55-24F-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code F	Male Pin Plug	Solder	4 GHz	Brown
Adam Tech RF55-24B-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code B	Male Pin Plug	Solder	4 GHz	White
Adam Tech RF55-24N-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code N	Male Pin Plug	Solder	4 GHz	Green Pastel
Adam Tech RF55-24M-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code M	Male Pin Plug	Solder	4 GHz	Orange Pastel
Adam Tech RF55-24D-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code D	Male Pin Plug	Solder	4 GHz	Bordeaux Violet
Adam Tech RF55-24H-T-09-50-A-SH	Crimp	85 °C	-40 °C	Fakra SMB	1	50 Ohms	Bulkhead - Rear Side Nut	Brass	Gold	Polytetrafluoroethylene (PTFE)	IP67 - Dust Tight Waterproof	Brass	Code H	Male Pin Plug	Solder	4 GHz	Violet

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.67
		10	$ 5.12
		25	$ 4.62
		50	$ 4.29
		100	$ 4.22
