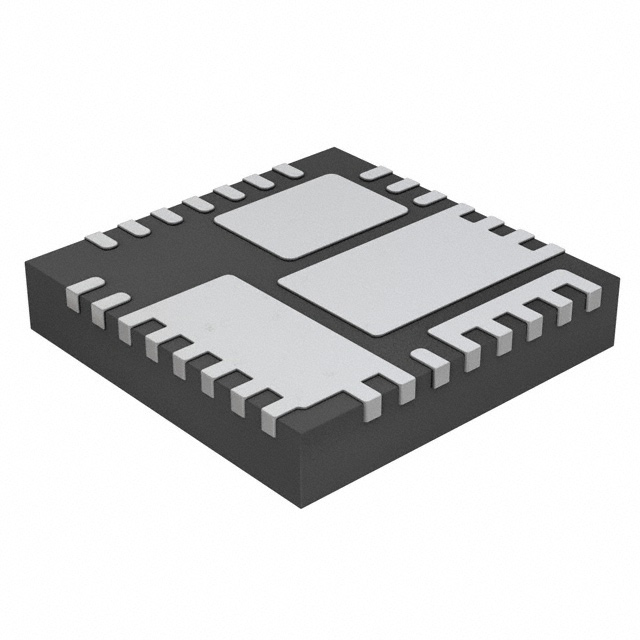

XR76201EL

Obsolete

MaxLinear, Inc.

IC REG BUCK ADJ 1.5A 30QFN

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

IC REG BUCK ADJ 1.5A 30QFN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Input (Min) [Min]	Function	Package / Case	Number of Outputs	Topology	Voltage - Output (Min/Fixed)	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Output Type
MaxLinear, Inc. XR76201ELMTR	Surface Mount	3 V	Step-Down	30-VFQFN Exposed Pad	1	Buck	0.6 V	Positive	-40 °C	125 ¯C	1.5 A	800 kHz	400 kHz	30-QFN (5x5)	Adjustable
MaxLinear, Inc. XR76201EL	Surface Mount	3 V	Step-Down	30-VFQFN Exposed Pad	1	Buck	0.6 V	Positive	-40 °C	125 ¯C	1.5 A	800 kHz	400 kHz	30-QFN (5x5)	Adjustable
MaxLinear, Inc. XR76201ELTR	Surface Mount	3 V	Step-Down	30-VFQFN Exposed Pad	1	Buck	0.6 V	Positive	-40 °C	125 ¯C	1.5 A	800 kHz	400 kHz	30-QFN (5x5)	Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 1.5A 30-VFQFN Exposed Pad

Technical documentation and resources

No documents available
