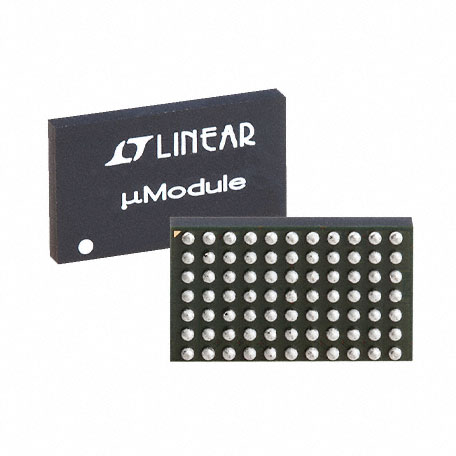

LTM8049IY
ActiveDC-DC CONVERTER, 2.5 TO 24V, 1A, BGA-77 ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
LTM8049IY
ActiveDC-DC CONVERTER, 2.5 TO 24V, 1A, BGA-77 ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8049IY |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1 A |
| Current - Output (Max) | 1 A |
| Features | UVLO, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 77-BBGA |
| Supplier Device Package | 77-BGA (15x9) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 2.6 V |
| Voltage - Output 1 [Max] | 24 V |
| Voltage - Output 1 [Min] | 2.5 V |
| Voltage - Output 2 [Max] | -24 V |
| Voltage - Output 2 [Min] | -2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LTM8049 Series
The LTM8049 is a Dual SEPIC/Inverting μModule®(power module) DC/DC Converter. Each of the two outputs can be easily configured as a SEPIC or Inverting converter by simply grounding the appropriate output rail. The LTM8049 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output caps, and small resistors to set the output voltages and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.The LTM8049 is packaged in a thermally enhanced, compact (15mm × 9mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8049 is RoHS compliant.ApplicationsBattery Powered RegulatorLocal Negative Voltage RegulatorLow Noise Amplifier Power
