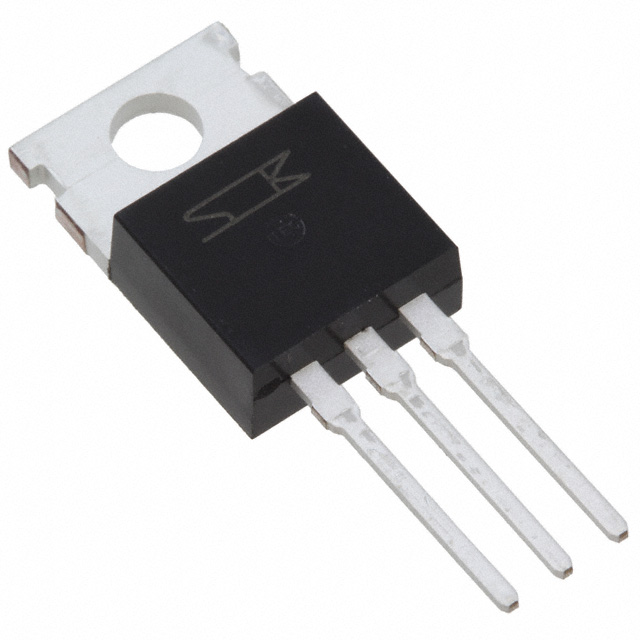

TMA166G-L

Obsolete

Sanken Electric USA Inc.

TRIAC 600V 16A TO220-3

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

TRIAC 600V 16A TO220-3

Technical Specifications

Parameters and characteristics for this part

Specification	TMA166G-L

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	168 A, 160 A
Current - On State (It (RMS)) (Max)	16 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3
Supplier Device Package	TO-220-3
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Package / Case	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - On State (It (RMS)) (Max)	Triac Type	Supplier Device Package	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)
Sanken Electric USA Inc. TMA166B-L	-40 °C	125 ¯C	30 mA	Single	TO-3P-3 Full Pack	600 V	1.5 V	180 A	190 A	16 A	Standard	TO-3PF	Through Hole
Sanken Electric USA Inc. TMA166G-L	-40 °C	125 ¯C	30 mA	Single	TO-220-3	600 V	1.5 V			16 A	Standard	TO-220-3	Through Hole	160 A 168 A
Sanken Electric USA Inc. TMA166P-L	-40 °C	125 ¯C	30 mA	Single	TO-3P-3 Full Pack	600 V	1.5 V	180 A	190 A	16 A	Standard	TO-3P	Through Hole
Sanken Electric USA Inc. TMA166S-L	-40 °C	125 ¯C	30 mA	Single	TO-220-3 Full Pack	600 V	1.5 V			16 A	Standard	TO-220F	Through Hole	160 A 168 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Standard 600 V 16 A Through Hole TO-220-3
