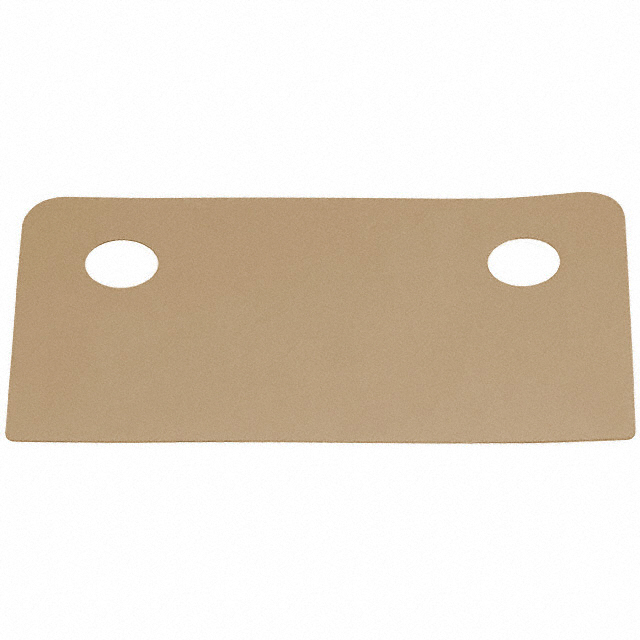

SPK10-0.006-00-105

Active

Bergquist - Henkel

THERM PAD 36.83X21.29MM BEIGE

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 36.83X21.29MM BEIGE

Technical Specifications

Parameters and characteristics for this part

Part	Outline [y]	Outline [x]	Thermal Conductivity	Usage	Color	Shape	Backing, Carrier	Material	Thickness	Thickness	Shelf Life Start	Shelf Life
Bergquist - Henkel SPK10-0.006-00-05	28.96 mm	41.91 mm	1.3 W/m-K	TO-3	Beige	Rhombus	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-34	19.05 mm	25.4 mm	1.3 W/m-K	TO-220 Dual	Beige	Rectangular	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-58	12.7 mm	19.05 mm	1.3 W/m-K	TO-220	Beige	Rectangular	Polyimide	Silicone Rubber	0.152 mm	0.006 in	Date of Manufacture	12 Months
Bergquist - Henkel SPK10-0.006-00-25	6.6 mm	25.4 mm	1.3 W/m-K	DO-5	Beige	Round	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-11	19.35 mm	33.32 mm	1.3 W/m-K	TO-66	Beige	Rhombus	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-114	21.01 mm	24 mm	1.3 W/m-K	TO-218 TO-220 TO-247	Beige	Rectangular	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-86	26.67 mm	39.62 mm	1.3 W/m-K	TO-3	Beige	Rhombus	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-11.512	292.1 mm	304.8 mm	1.3 W/m-K		Beige	Rectangular	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-105	21.29 mm	36.83 mm	1.3 W/m-K	SIP	Beige	Rectangular	Polyimide	Silicone Rubber	0.152 mm	0.006 in
Bergquist - Henkel SPK10-0.006-00-36	19.05 mm	38.1 mm	1.3 W/m-K	TO-220 Triple	Beige	Rectangular	Polyimide	Silicone Rubber	0.152 mm	0.006 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad Beige 36.83mm x 21.29mm Rectangular
