ZXSC310EV

Obsolete

Diodes Inc

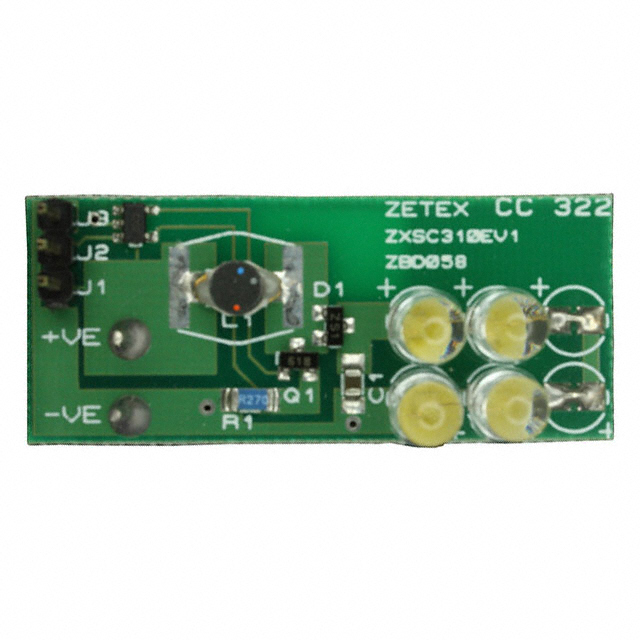

EVAL BOARD FOR ZXSC310

Search across all available documentation for this part.

Obsolete

Diodes Inc

EVAL BOARD FOR ZXSC310

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Type	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Mounting Type	Voltage - Supply (Min) [Min]	Applications	Frequency	Outputs and Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents
Diodes Inc ZXSC310E5TA	Step-Up (Boost)	DC DC Controller	SOT-23-5 Thin TSOT-23-5	1	85 °C	-40 °C		Surface Mount	0.8 V	Backlight	200 kHz
Diodes Inc ZXSC310EV												1 Non-Isolated Output	ZXSC310	8 VDC	0.8 V	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ZXSC310 - 1 Non-Isolated Output LED Driver Evaluation Board
