PFRA.160.2

Active

SCHURTER Inc.

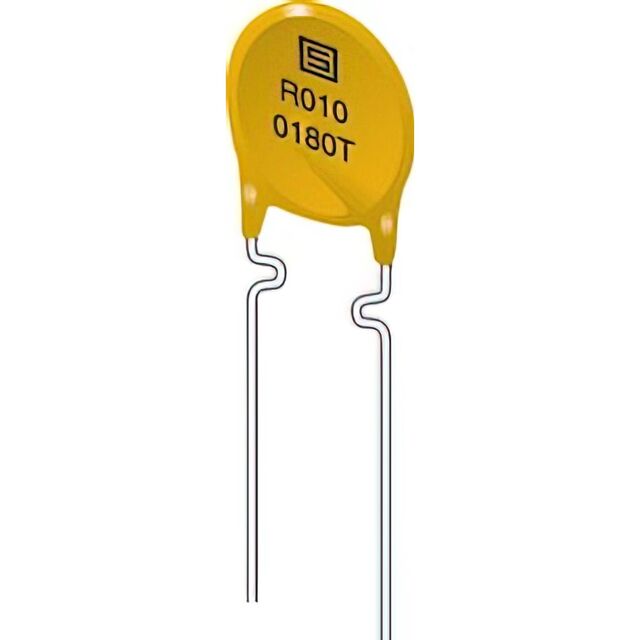

PTC RESET FUSE 30V 1.6A RADIAL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 30V 1.6A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PFRA.160.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.6 A
Current - Max [Max]	40 A
Current - Trip (It)	3.2 A
Height - Seated (Max) [Max]	16.8 mm
Height - Seated (Max) [Max]	0.661 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	55 mOhms
Resistance - Post Trip (R1) (Max) [Max]	150 mOhms
Size / Dimension [custom]	0.118 "
Size / Dimension [custom]	3 mm
Size / Dimension [diameter]	10.2 mm
Size / Dimension [diameter]	0.402 in
Time to Trip	8 s
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Time to Trip	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Current - Max [Max]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [diameter]	Type	Lead Spacing	Lead Spacing	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]
SCHURTER Inc. PFRA.160.2	Through Hole	150 mOhms	3.2 A	16.8 mm	0.661 "	Disc Radial	8 s	1.6 A	30 V	40 A	10.2 mm	0.118 "	3 mm	0.402 in	Polymeric	5.1 mm	0.201 in	cURus TUV	85 °C	-40 °C	55 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 1.6 A Ih Through Hole Radial, Disc
