RJP60F0DPE-00#J3

Obsolete

Renesas Electronics Corporation

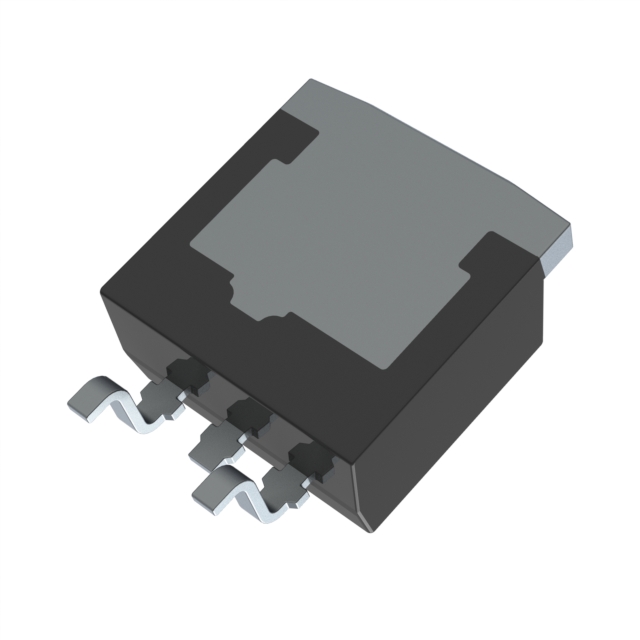

IGBT TRENCH 600V 50A LDPAK

Search across all available documentation for this part.

Obsolete

Renesas Electronics Corporation

IGBT TRENCH 600V 50A LDPAK

Technical Specifications

Parameters and characteristics for this part

Specification	RJP60F0DPE-00#J3

Current - Collector (Ic) (Max)	50 A
IGBT Type	Trench
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-83
Power - Max [Max]	122 W
Td (on/off) @ 25°C	70 ns, 46 ns
Test Condition	5 Ohm, 15 V, 30 A, 400 V
Vce(on) (Max) @ Vge, Ic	1.82 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

IGBT for IH

Part	Vce(on) (Max) @ Vge, Ic	IGBT Type	Operating Temperature	Reverse Recovery Time (trr)	Td (on/off) @ 25°C	Power - Max [Max]	Package / Case	Mounting Type	Test Condition	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - Collector (Ic) (Max)	Td (on/off) @ 25°C	Gate Charge
Renesas Electronics Corporation RJH60F4DPQ-A0#T0	1.82 V	Trench	150 °C	90 ns	45 ns 85 ns	235.8 W	TO-247-3	Through Hole	5 Ohm 15 V 30 A 400 V	TO-247A	600 V	60 A
Renesas Electronics Corporation RJH60F6DPQ-A0#T0	1.75 V	Trench	150 °C	90 ns	58 ns 131 ns	297.6 W	TO-247-3	Through Hole	5 Ohm 15 V 30 A 400 V	TO-247A	600 V	85 A
Renesas Electronics Corporation RJP60F0DPM-00#T1	1.82 V	Trench	150 °C		46 ns 70 ns	40 W	TO-220-3 Full Pack	Through Hole	5 Ohm 15 V 30 A 400 V	TO-3PFM	600 V		50 A
Renesas Electronics Corporation RJP60F5DPM-00#T1	1.8 V	Trench	150 °C			45 W	TO-220-3 Full Pack	Through Hole	5 Ohm 15 V 30 A 400 V	TO-3PFM	600 V	80 A		53 ns 90 ns	74 nC
Renesas Electronics Corporation RJP60F0DPE-00#J3	1.82 V	Trench	150 °C		46 ns 70 ns	122 W	SC-83	Surface Mount	5 Ohm 15 V 30 A 400 V		600 V		50 A
Renesas Electronics Corporation RJH60F5DPK-00#T0	1.8 V	Trench	150 °C	140 ns	53 ns 105 ns	260.4 W	SC-65-3 TO-3P-3	Through Hole	5 Ohm 15 V 30 A 400 V	TO-3P	600 V	80 A
Renesas Electronics Corporation RJP60F4DPM-00#T1	1.82 V	Trench	150 °C			41.2 W	TO-220-3 Full Pack	Through Hole	5 Ohm 15 V 30 A 400 V	TO-3PFM	600 V	60 A		45 ns 70 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT devices for induction heating (IH) (soft switching), recommended for 10 to 100 kHz frequencies, and not guaranteed against short circuit.
