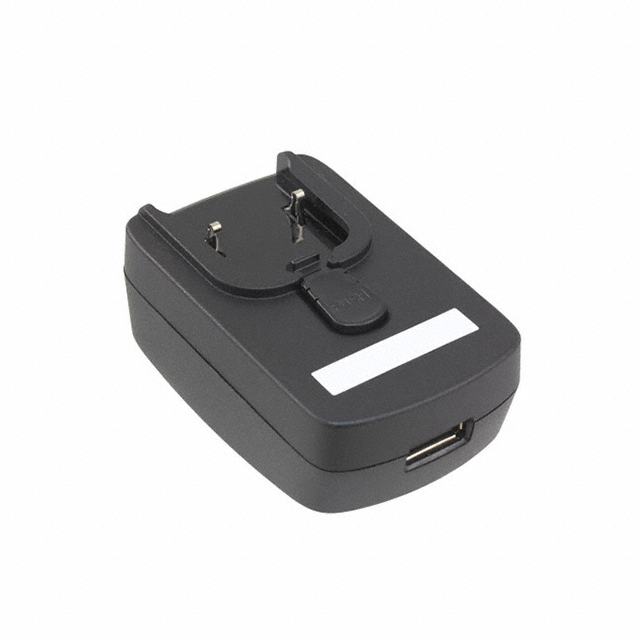

PSAI05R-050QL6-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
PSAI05R-050QL6-R
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAI05R-050QL6-R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | AS/NZS, IEC, cULus |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| Power (Watts) | 5 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.96 in |
| Size / Dimension [x] | 75.3 mm |
| Size / Dimension [y] | 46 mm |
| Size / Dimension [y] | 1.81 in |
| Size / Dimension [z] | 1.25 " |
| Size / Dimension [z] | 31.7 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 0.308 lb |
| Weight | 140 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.90 | |
| 10 | $ 5.52 | |||
| 25 | $ 5.38 | |||
Description
General part information
PSAI05R Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
