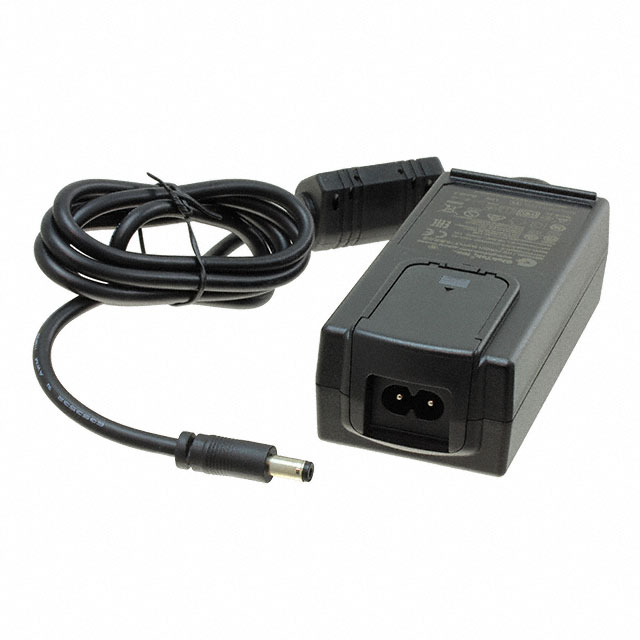

RR9LA8000CCPIM(R6B)

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADAPT 5V 40W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADAPT 5V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9LA8000CCPIM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	8 A
Efficiency	Level VI
Form	Wall Mount (Class I), Desktop
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Approval Agency	Cord Length	Cord Length	Form	Voltage - Input [Min]	Voltage - Input [Max]	Applications	No Load Power Consumption [Max]	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Standard Number	Region Utilized	Input Type	Voltage - Output	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Efficiency
GlobTek, Inc. RR9LA8000CCPIM(R6B)	-20 C	40 °C	40 W	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	1.2 m	47.2 in	Desktop Wall Mount (Class I)	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	75 mW	Positive Center	Barrel Plug	2.1 mm 5.5 mm	11 mm	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	International	Cord Multi-Blade	5 V	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	8 A	Level VI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 40 W AC/DC External Desktop, Wall Mount (Class I) Adapter Cord, Multi-Blade (Sold Separately) Input
