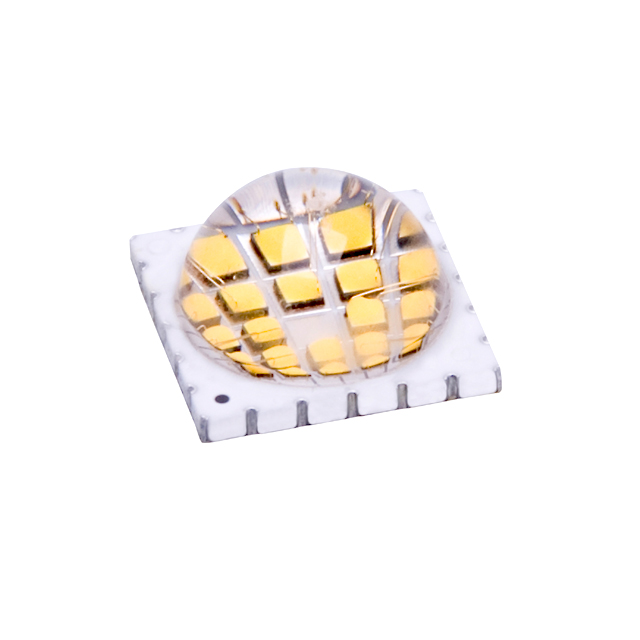

LZP-00UB00-00U4

Active

ams-OSRAM USA INC.

LED EMITTER UV VIOLET SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LZP-00UB00-00U4

Active

ams-OSRAM USA INC.

LED EMITTER UV VIOLET SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZP-00UB00-00U4

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature	130 °C
Orientation	Top View
Package / Case	24-SMD, No Lead Exposed Pad
Type	Ultraviolet (UV)
Viewing Angle	130 °
Wavelength	388 nm
Wavelength [Max]	390 nm
Wavelength [Min]	385 nm

LZP-00 Series

Part	Wavelength	Light Emitting Surface (LES) [diameter]	Type	Viewing Angle	Height [z]	Color	Configuration	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Current - Max	Size / Dimension [x]	Size / Dimension [y]	Lens Type	CCT (K)	Thermal Resistance of Package [custom]	Mounting Type	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test	Current - Test	Current - Test [custom]	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Package / Case	Wavelength [Max]	Wavelength [Min]	Orientation	Current - DC Forward (If) (Max)	Operating Temperature	Current - DC Forward (If) (Max) [Max]
ams-OSRAM USA INC. LZP-00MN00-0000	457 nm 523 nm 623 nm	10.5 mm	LED Module	125 °	6.13 mm	Blue Green Red White	Square	92 lm/W	63 lm/W	18 lm/W	75 lm/W	14.5 V 17.8 V 20.9 V 24.1 V	1550 lm	920 lm	230 lm	765 lm	1A Blue 1A Green 1A Red 1A White	12 mm	12 mm	Domed
ams-OSRAM USA INC. LZP-00CW00-0055				110 °		Cool White						21 V						0.472 in	0.472 "		5500 K	0.6 °C/W	Surface Mount	4050 lm	0.26 in	6.6 mm	69 lm/W	700 mA	4	1.2 A	12 mm	12 mm	SMD	24-SMD No Lead Exposed Pad
ams-OSRAM USA INC. LZP-00UB00-00U4	388 nm		Ultraviolet (UV)	130 °																			Surface Mount											24-SMD No Lead Exposed Pad	390 nm	385 nm	Top View	1 A	130 °C
ams-OSRAM USA INC. LZP-00UB0R-00U4	388 nm		Ultraviolet (UV)	115 °								20.9 V											Surface Mount											24-SMD No Lead Exposed Pad	390 nm	385 nm	Top View		60 °C	600 mA
ams-OSRAM USA INC. LZP-00UB00-00U8	408 nm		Ultraviolet (UV)	130 °																			Surface Mount											24-SMD No Lead Exposed Pad	410 nm	405 nm	Top View	1 A	130 °C
ams-OSRAM USA INC. LZP-00UB0R-00U5			Ultraviolet (UV)	115 °								20.9 V											Surface Mount											24-SMD No Lead Exposed Pad	395 nm	390 nm	Top View		60 °C	600 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LZP-00 Series

Ultraviolet (UV) Emitter 388nm (385nm ~ 390nm) 22V 1A 130° 24-SMD, No Lead Exposed Pad
