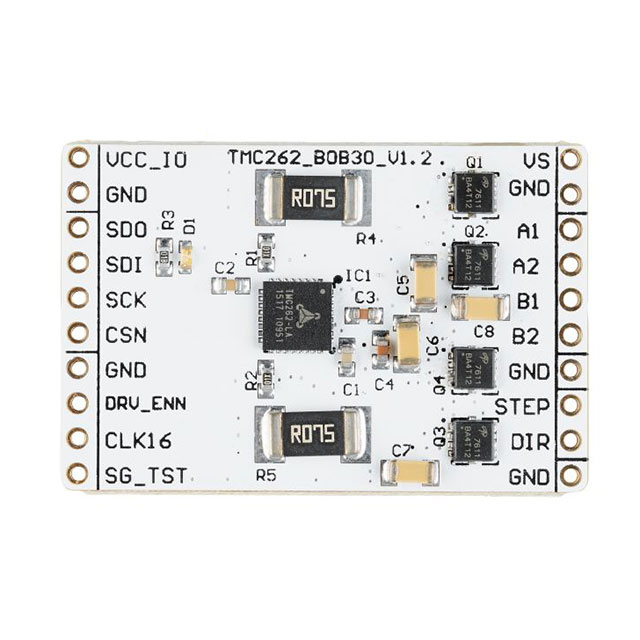

TMC262-BOB30

Unknown

Analog Devices Inc./Maxim Integrated

BREAKOUT BOARD FOR TMC262

Deep-Dive with AI

Search across all available documentation for this part.

TMC262-BOB30

Unknown

Analog Devices Inc./Maxim Integrated

BREAKOUT BOARD FOR TMC262

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMC262-BOB30

Embedded	Yes, MCU
Primary Attributes	Motors (Stepper)
Secondary Attributes	SPI Interface, SPI Interface(s)
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	TMC262, TMC26230

TMC262 Series

Part	Utilized IC / Part	Type	Primary Attributes	Secondary Attributes	Supplied Contents	Contents	Function	Output Configuration	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Package / Case	Mounting Type	Step Resolution [Max]	Step Resolution [Min]	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Motor Type - Stepper	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Embedded
Analog Devices Inc./Maxim Integrated TMC262-BOB60	TMC262	Power Management	Motors (Stepper)	SPI Interface(s)	Board(s)	Board(s)
Analog Devices Inc./Maxim Integrated TMC262C-LA-T							Controller - Commutation Direction Management	Pre-Driver - Half Bridge (4)	9 V	59 V	SPI Step/Direction	32-VFQFN Exposed Pad	Surface Mount	1	0.00390625	Power MOSFET	5.25 V	3 V	General Purpose	Bipolar	-40 °C	125 ¯C	32-QFN (5x5)
Analog Devices Inc./Maxim Integrated TMC262C-LA							Controller - Commutation Direction Management	Pre-Driver - Half Bridge (4)	9 V	59 V	SPI Step/Direction	32-VFQFN Exposed Pad	Surface Mount	1	0.00390625	Power MOSFET	5.25 V	3 V	General Purpose	Bipolar	-40 °C	125 ¯C	32-QFN (5x5)
Analog Devices Inc./Maxim Integrated TMC262-LA							Controller - Commutation Direction Management	Pre-Driver - Half Bridge (4)	9 V	59 V	SPI Step/Direction	32-VFQFN Exposed Pad	Surface Mount	1	0.00390625	Power MOSFET	5.25 V	3 V	General Purpose	Bipolar	-40 °C	125 ¯C	32-QFN (5x5)
Analog Devices Inc./Maxim Integrated TMC262-BOB30	TMC262 TMC26230	Power Management	Motors (Stepper)	SPI Interface SPI Interface(s)	Board(s)																			Yes MCU
Analog Devices Inc./Maxim Integrated TMC262-LA-T							Controller - Commutation Direction Management	Pre-Driver - Half Bridge (4)	9 V	59 V	SPI Step/Direction	32-VFQFN Exposed Pad	Surface Mount	1	0.00390625	Power MOSFET	5.25 V	3 V	General Purpose	Bipolar	-40 °C	125 ¯C	32-QFN (5x5)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.04
		10	$ 27.70
		25	$ 26.46
		100	$ 23.66
		250	$ 22.57
	Bulk	1	$ 20.20

Description

General part information

TMC262 Series

TMC26230 Motor Controller/Driver, Stepper Power Management Evaluation Board

Documents

Technical documentation and resources

No documents available
