XG8V-0331
ActiveOmron Electronics Inc-EMC Div

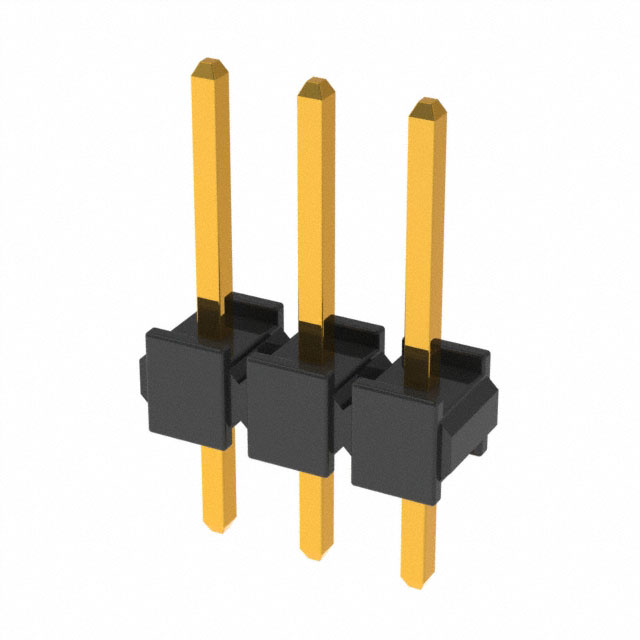

CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
XG8V-0331
ActiveOmron Electronics Inc-EMC Div
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XG8V-0331 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.15 µm |
| Contact Finish Thickness - Mating | 5.9 µin |
| Contact Finish Thickness - Post | 0.15 µm |
| Contact Finish Thickness - Post | 5.9 µin |
| Contact Length - Mating | 6 mm |
| Contact Length - Mating | 0.236 in |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Brass, Nickel |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 0.453 in |
| Overall Contact Length | 11.5 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 300 VDC |
XG8V Series
| Part | Voltage Rating | Connector Type | Style | Contact Material | Material Flammability Rating | Current Rating (Amps) | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Termination | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Shrouding | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Contact Type | Mounting Type | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 300 VDC | Header | Board to Board Cable | Brass Nickel | UL94 V-0 | 3 A | Polybutylene Terephthalate (PBT) Glass Filled | 0.15 µm | 5.9 µin | 0.453 in | 11.5 mm | 6 mm | 0.236 in | Solder | Push-Pull | 105 ░C | -55 °C | Gold | Unshrouded | Square | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | All | Male Pin | Through Hole | 1 | 0.15 µm | 5.9 µin | 0.118 in | 3 mm | Black | |
Omron Electronics Inc-EMC Div | 300 VDC | Header | Board to Board Cable | Brass Nickel | UL94 V-0 | 3 A | Polybutylene Terephthalate (PBT) Glass Filled | 0.15 µm | 5.9 µin | 0.453 in | 11.5 mm | 6 mm | 0.236 in | Solder | Push-Pull | 105 ░C | -55 °C | Gold | Unshrouded | Square | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | All | Male Pin | Through Hole | 1 | 0.15 µm | 5.9 µin | 0.118 in | 3 mm | Black | 4 |
Omron Electronics Inc-EMC Div | 300 VDC | Header | Board to Board Cable | Brass Nickel | UL94 V-0 | 3 A | Polybutylene Terephthalate (PBT) Glass Filled | 0.15 µm | 5.9 µin | 0.453 in | 11.5 mm | 6 mm | 0.236 in | Solder | Push-Pull | 105 ░C | -55 °C | Gold | Unshrouded | Square | 0.1 in | 2.54 mm | Gold | 0.098 in | 2.5 mm | All | Male Pin | Through Hole | 1 | 0.15 µm | 5.9 µin | 0.118 in | 3 mm | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
Description
General part information
XG8V Series
Connector Header Through Hole 3 position 0.100" (2.54mm)
