Q-61061000K.25M

Active

Amphenol Custom Cable

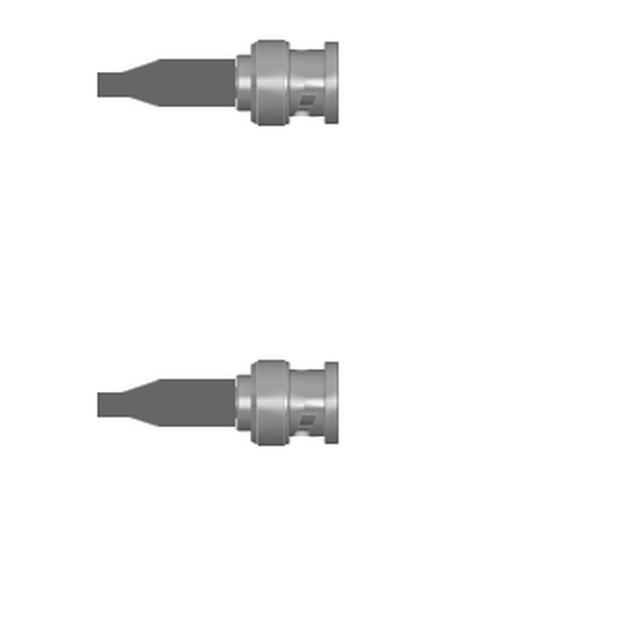

CBL ASSY BNC PLUG TO PLUG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-61061000K.25M

Active

Amphenol Custom Cable

CBL ASSY BNC PLUG TO PLUG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-61061000K.25M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Belden 4855R
Color	Black
Features	Shielded
Frequency - Max [Max]	12 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	75 Ohms
Style	BNC to BNC

Q-610610 Series

Part	1st Contact Gender	2nd Connector	Cable Type	Style	Frequency - Max [Max]	Length	Length	Length	Features	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	1st Connector	Overall Impedance	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-61061000K2.5M	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz	8.2 '	98.4 in	2.5 m	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K003i	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz		3 in	76.2 mm	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K002M	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz	6.6 ft	78.7 in	2 m	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K024i	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz		24 "	609.6 mm	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K003M	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz	9.8 '	118.1 in	3 m	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K012i	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz		12 "	304.8 mm	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K072i	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz	6 ft	72 in	1.8 m	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K0.5M	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz		19.69 "	50 cm	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black
Amphenol Custom Cable Q-61061000K.25M	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz				Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black	9.843 "	250 mm
Amphenol Custom Cable Q-61061000K006i	Male	BNC Plug	Belden 4855R	BNC to BNC	12 GHz		6 in	152.4 mm	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	BNC Plug	75 Ohms	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 82.30
		25	$ 80.69
		50	$ 79.07
		100	$ 77.46
		250	$ 75.84

Description

General part information

Q-610610 Series

Cable Assembly Coaxial BNC to BNC Belden 4855R 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
