0395311012

Active

Molex

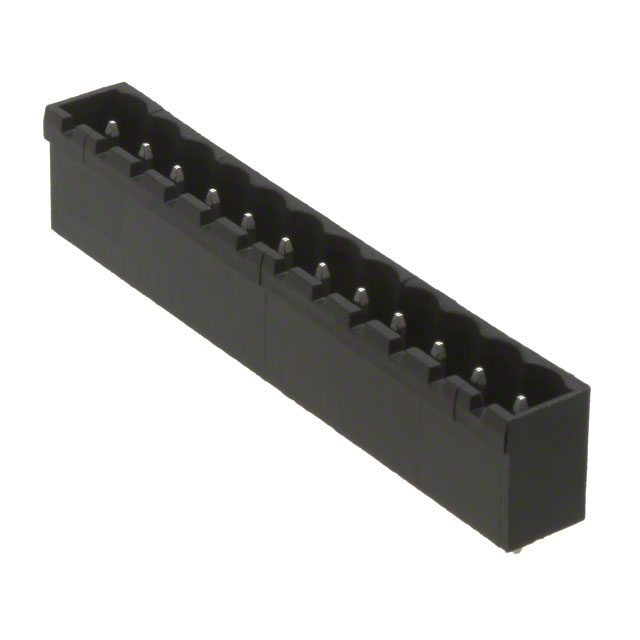

CONN SHROUDED HEADER (4 SIDES) HDR 12 POS 5.08MM SOLDER ST TOP ENTRY THRU-HOLE EUROSTYLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395311012

Active

Molex

CONN SHROUDED HEADER (4 SIDES) HDR 12 POS 5.08MM SOLDER ST TOP ENTRY THRU-HOLE EUROSTYLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395311012

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.3 mm
Contact Tail Length	0.13 in
Header Orientation	Vertical
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039531 Series

...

Part	Insulation Height	Insulation Height	Termination Style	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Number of Positions	Contact Tail Length	Contact Tail Length	Voltage - UL	Mounting Type	Material Flammability Rating	Contact Mating Finish	Pitch [x]	Pitch [x]	Header Orientation	Type	Contact Material	Positions Per Level
Molex 0395310021	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1	21	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	Tin	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (2 Side)	Brass	21
Molex 0395311012	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1	12	0.13 in	3.3 mm	300 V	Through Hole	UL94 V-0	Tin	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (4 Side)	Brass	12
Molex 0395311011	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1	11	0.13 in	3.3 mm	300 V	Through Hole	UL94 V-0	Tin	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (4 Side)	Brass	11
Molex 0395314506	0.472 in	12 mm	Solder	Black	-40 °C	140 °C	1	6	0.13 in	3.3 mm	300 V	Through Hole	UL94 V-0	Gold	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (4 Side)	Brass	6
Molex 0395311017	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1		0.13 in	3.3 mm	300 V	Through Hole	UL94 V-0	Tin	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (4 Side)	Brass	17
Molex 0395311020	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1	20	0.13 in	3.3 mm	300 V	Through Hole	UL94 V-0	Tin	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (4 Side)	Brass	20
Molex 0395316514	0.472 in	12 mm	Solder	Green	-40 °C	105 ░C	1	14	0.13 in	3.3 mm	300 V	Through Hole	UL94 V-0	Gold	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (4 Side)	Brass	14
Molex 0395310508	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1	8	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	Gold	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (2 Side)	Brass	8
Molex 0395315024	0.472 in	12 mm	Solder	Green	-40 °C	105 ░C	1	24	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	Tin	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (2 Side)	Brass
Molex 0395310510	0.472 in	12 mm	Solder	Black	-40 °C	105 ░C	1	10	0.15 in	3.81 mm	300 V	Through Hole	UL94 V-0	Gold	0.2 in	5.08 mm	Vertical	Header Male Pins Shrouded (2 Side)	Brass	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.77
Digikey	Bulk	1	$ 3.72
		10	$ 2.84
		100	$ 2.26
		500	$ 1.97
		1000	$ 1.87
		5000	$ 1.70

Description

General part information

039531 Series

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
